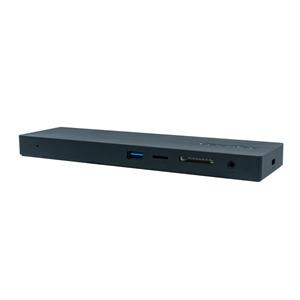

VisionTek VT2500 - Triple Display USB-C Docking Station with Power Delivery

UPC Code: 784090040145
Manufacturer Warranty: 2 Year Limited
D&H Returns Allowed: yes
Return Period (Days): 60
Add'l Return Info: Past Exchange-Call Visiontek 866-883-5411
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   VisionTek Products, LLC
Manufacturer Part Number:   901381
Manufacturer Website Address:   www.visiontek.com
Brand Name:   VisionTek
Product Model:   VT2500
Product Name:   VT2500 - Triple Display USB-C Docking Station with Power Delivery
Marketing Information:

Increase productivity with our plug and play power passthrough docking station, the VisionTek VT2500 USB-C Docking Station for Windows™ and Mac™ laptop systems.

With a single USB-C connection, you can connect up to three external displays, transfer files and data at up to 5Gbps speeds, play audio and charge your laptop and mobile devices.

- Universally Compatible USB-C - Windows™ or Mac™ with USB-C 3.2 Gen 2, the VT2500 is compatible through the single, included USB-C 1 meter cable, making this the ideal docking station for mixed system environments. Also compatible with Thunderbolt™ 3 systems.

- USB-C Power Delivery - Charge your laptop, up to 85W with included USB-C Power adapter and cable. The VT2500 can also be used without the power adapter to charge your mobile devices from the laptop's battery. USB-C power adapter can be used to charge your laptop without the dock too.

- Connect Up to Three External Displays - The VT2500 has three video ports to provide video connection options that suit your needs using MST technology. Use two DisplayPort and one HDMI together for a three-display experience. (Windows™ systems support up to three external displays. Mac™ systems support one extended and one cloned/mirrored external display.)

- Expanded Selection of Ports - Flexibility is the goal with the VT2500, by offering some of the most commonly needed ports in one dock using the included 1 meter USB-C cable.

- 1x HDMI and 2x DP ports let you connect external displays to increase your system workspace.

- 2x USB 3.0 ports let you connect external storage or mobile devices for sync & charge.

- 2x USB 2.0 ports increase the number of compatible devices you can connect when you don't need USB 3.0 speed support, including full sized mouse & keyboard.

- 1x SD and 1x MicroSD Reader port let you retrieve data without having to use any of the USB ports.

- 1x Combination 3.5mm Audio Input/Output port gives you a single connection option for music listening or video conference participation.

- 1x RJ45 port supports speeds up to 1000Mbps (10/100/1000Mbps supported) to keep you wired to the internet, avoiding Wi-Fi connection or security concerns.

Key Features:

• USB-C Compatibility (Including Thunderbolt™ 3)
• Triple Display MST Docking Station
• Power Delivery up to 85W with included USB-C Power adapter and cable
• Supports up to 3 external displays - Windows™
• Supports up to 2 external displays - Mac™
• 2x USB 3.0 Ports
• 2x USB 2.0 Ports
• Kensington™ Security Lock Slot
• Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot

Package Type:   Retail
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wireless
Device Supported:   Notebook/Smartphone

Interfaces/Ports

Host Interface:   USB Type C
Total Number of USB Ports:   4
Number of USB 2.0 Ports:   2
Number of USB 3.0 Ports:   2
USB Type-C:   Yes
USB Type-C Detail:   1 x USB-C Power Delivery Input Port
Network (RJ-45):   Yes
Number of DisplayPort Outputs:   2
DisplayPort:   Yes
Headphone/Microphone Combo Port:   Yes
Number of HDMI Outputs:   1
HDMI:   Yes

Power Description

Maximum Power Supply Wattage:   85 W

Physical Characteristics

Height:   0.75" (19.05 mm)
Width:   8.15" (207.01 mm)
Depth:   2.25" (57.15 mm)
Weight (Approximate):   226.8 g

Miscellaneous

Package Contents:

• VT2500 - Triple Display USB-C Docking Station with Power Delivery
• 1 x 100W Power Adapter & Cable (85W to system if using dock)
• 1 x USB-C to USB-C Cable 3 (1M)
• 1 x Quick Start Manual

Kensington Security Slot:   Yes
Compatibility:   Apple Macbook
Brand Compatibility:   Apple
Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
