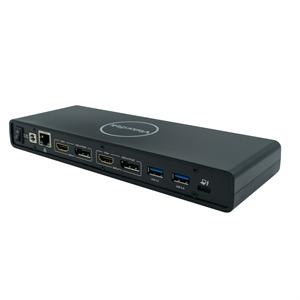

VisionTek Dual 4K USB PD Dock

UPC Code: 784090038975
Manufacturer Warranty: 2 YEAR LIMITED
D&H Returns Allowed: yes
Return Period (Days): 60
Add'l Return Info: Past Exchange-Call Visiontek 866-883-5411
Master Pack Qty: 20
Country of Origin: CHINA

General Information

Manufacturer:   VisionTek Products, LLC
Manufacturer Part Number:   901250
Manufacturer Website Address:   www.visiontek.com
Brand Name:   VisionTek
Product Model:   VT4500
Product Name:   VT4500 Dual Display 4K USB 3.0 & USB-C Docking Station with Power Delivery
Marketing Information:

The VisionTek Dual Display 4K Docking Station with Power Delivery enables you to easily connect to your Windows™, Mac™ or Chrome™ laptop to dual 4K displays and up to eight peripherals. The VT4500 is designed to instantly connect and disconnect from your laptop through a single high-speed cable.

• Universal Compatibility - Windows™, Mac™ or Chrome™ the VT4500 is compatible with USB 3.0, USB-C and Thunderbolt™ 3 systems, making this an ideal docking station for mixed system environments. The VT4500 come with both USB Type-A to C and USB Type-C to C cables for ease of compatibility and setup.
• Connect Two External Displays - Increase productivity by expanding your
• workspace with up to two additional displays. DP 1.2 supports resolutions up to 4096 x 2160 @60Hz. Includes display support for HBR2(5.4GHz) that is backwards compatible with HBR(2.7GHz). (Single 5K DP++, up to 5120 x 2880 @60Hz.)
• Power Delivery - Charge your compatible USB-C laptop with up to 60W of Power Delivery.
• 11-in-1 Dock with 6 USB Ports - The VT4500 was designed for compatibility by including many of the most commonly needed ports in one dock.
• 1x USB 3.1 Type-C Gen 2 port connects to your system with either of the included cables:

• 1x USB 3.0 Type-A to USB 3.1 Type-C
• 1x USB 3.1 Type-C to USB 3.1 Type-C

• 2x DP and 2x HDMI ports let you connect up to two external displays to increase your system workspace. Up to 4 Displays can be supported with the VT70 (sold separately) plugged into USB ports on the dock.
• 4x USB 3.0 ports let you connect external storage, full size keyboard and mouse, or mobile devices while supporting data transfer rates of up to 5Gbps.
• 2x USB 3.1 Type-C Gen 1 ports for connecting external storage or mobile devices while supporting transfer rates of up to 10Gbps.
• 1x 3.5mm Audio Line-Out port for headphones and 3.5mm Line-In port for a microphone, allowing for video conference communication and music listening.
• 1x RJ45 Ethernet with 10/100/1000 Mbps support keeps you wired the internet, avoiding Wi-Fi connection issues or security concerns.

More from the Manufacturer

Packaged Quantity:   1
Package Type:   Retail
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook/Tablet PC/Desktop PC

Interfaces/Ports

Host Interface:   USB 3.1 (Gen 1) Type C
Audio Line In:   Yes
Audio Line Out:   Yes
Total Number of USB Ports:   6
Number of USB 3.0 Ports:   4
Number of USB 3.1 Gen 1 Type-C Ports:   2
USB Type-C:   Yes
Network (RJ-45):   Yes
DisplayPort:   Yes
Microphone:   Yes
HDMI:   Yes

Power Description

Maximum Power Supply Wattage:   60 W

Physical Characteristics

Height:   1.13" (28.70 mm)
Width:   8.75" (222.25 mm)
Depth:   3.32" (84.33 mm)
Weight (Approximate):   334.5 g

Miscellaneous

Package Contents:

• VT4500 Dual Display 4K USB 3.0 & USB-C Docking Station with Power Delivery
• 1 x DC20V Certified Power Adapter
• 1 x USB-C 3.0 to USB-C 3.0 Cable
• 1 x USB-A 3.0 to USB-C 3.0 Cable
• Sotiware Installation CD
• User Manual

Kensington Security Slot:   Yes
Compatibility:

• Apple MacBook
• Microsoft Surface Pro

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
