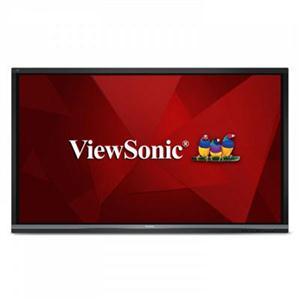

ViewSonic ViewBoard IFP7550 Collaboration Display

UPC Code: 766907901610
Manufacturer Warranty: 3 Year Limited
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exch-Call Viewsonic 800-688-6688
Master Pack Qty: 4
Country of Origin: CHINA

General Information

Manufacturer:   ViewSonic Corporation
Manufacturer Part Number:   IFP7550
Manufacturer Website Address:   www.viewsonic.com
Brand Name:   ViewSonic
Product Line:   ViewBoard
Product Model:   IFP7550
Product Name:   ViewBoard IFP7550 Collaboration Display
Marketing Information:   This item has been discontinued. Please see our replacement sku here. Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic^® ViewBoard^™ IFP7550 delivers incredible collaborative capabilities for modern boardrooms and classrooms. With vBoard^™ Embedded software, this 75" interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. For more robust annotation options, ViewBoard^® Interactive Annotation Software for Windows PC is available via a free download. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability for more computing-intensive interactive applications. The IFP7550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.

For more detailed information on how ViewSonic ViewBoards can best be utilized in a school environment, see our ViewBoard FAQs.

Product Type:   Collaboration Display

Display & Graphics

Screen Size:   75"
Display Screen Type:   LCD
Backlight Technology:   LED
Screen Mode:   4K UHD
Screen Resolution:   3840 x 2160
Scan Format:   2160p
Aspect Ratio:   16:9
Response Time:   8 ms
Contrast Ratio:   1,200:1
Brightness:   350 cd/m²
Horizontal Viewing Angle:   178°
Vertical Viewing Angle:   178°

Touchscreen Information

Touchscreen:   Yes
Multi-touch Screen:   Yes
Number of Touch Points:   20
Touchscreen Technology:   Infrared (IrDA)

Processor & Chipset

Processor Manufacturer:   ARM
Processor Type:   Cortex A53
Processor Speed:   1.20 GHz
Processor Core:   Quad-core (4 Core)

Memory

Standard Memory:   2 GB

Audio

Speakers:   Yes
Number of Speakers:   2
RMS Output Power:   32 W

Network & Communication

Ethernet:   Yes
Ethernet Technology:   Fast Ethernet
Wireless LAN:   Yes

Interfaces/Ports

HDMI:   Yes
Number of HDMI Inputs:   3
Number of HDMI Outputs:   1
Total Number of USB Ports:   8
Number of USB 2.0 Ports:   3
Number of USB 3.0 Ports:   3
USB:   Yes
Number of Network (RJ-45) Ports:   1
Network (RJ-45):   Yes
Audio Line In:   Yes
Audio Line Out:   Yes
Number of VGA Ports:   1
VGA:   Yes
Composite Video:   Yes
DisplayPort:   Yes
Serial:   Yes
S/PDIF Out:   Yes

Software

Operating System Platform:   Android
Operating System:   Android 5.1 Lollipop
Software Included:   vBoard Embedded software

Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Power Consumption:   430 W

Physical Characteristics

Product Color:   Black
VESA Mount Compatible:   Yes
VESA Mount Standard:   800 x 400
Height:   41" (1041.40 mm)
Width:   69.40" (1762.76 mm)
Depth:   11" (279.40 mm)
Weight (Approximate):   58.50 kg

Miscellaneous

Package Contents:

• ViewBoard IFP7550 Collaboration Display
• VGA cable (5 meters)
• 4 x Power cable (3 meters)
• Remote control
• USB cable for touch control (5 meters)
• Audio cable (5 meters)
• AV cable
• 3 x Touching pen
• ViewSonic CD-ROM Wizard
• Quick Start Guide
• RS232 adapter
• Camera plate

Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   ErP
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
