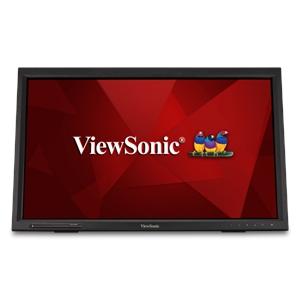

ViewSonic TD2423d 24" LCD Touchscreen Monitor - 16:9 - 7 ms GTG

UPC Code: 766907011685
Manufacturer Warranty: NONE
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Viewsonic 800-688-6692
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   ViewSonic Corporation
Manufacturer Part Number:   TD2423D
Manufacturer Website Address:   www.viewsonic.com
Brand Name:   ViewSonic
Product Model:   TD2423d
Product Name:   TD2423d - 24" Display, MVA Panel, 1920 x 1080 Resolution
Marketing Information:   Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic^® TD2423d is a 24" touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2423d delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, DisplayPort, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What's more, ViewSonic's exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.
Product Type:   LCD Touchscreen Monitor

Technical Information

Screen Size Class:   24.00" (609.60 mm)
Viewable Screen Size:   24"
Screen Mode:   Full HD
Panel Technology:   MVA technology
Response Time:   7 ms GTG
Aspect Ratio:   16:9
Horizontal Viewing Angle:   178°
Vertical Viewing Angle:   178°
Mount Type:   Wall Mountable
Backlight Technology:   LED
Features:   7H Surface Hardness
Features:   Antimicrobial
Features:   Auto ImageSet
Features:   Cable Lock Slot
Features:   Dispersive IR Touch Technology
Features:   Eco Mode
Features:   Flicker-free
Features:   On-screen Display (OSD)
Features:   Touch Controls
Horizontal Frequency:   24 kHz to 82 kHz
Vertical Frequency:   50 Hz to 75 Hz
Stand Adjustments:   Tilt
Curved Screen:   No

Video

Maximum Resolution:   1920 x 1080
Standard Refresh Rate:   75 Hz
Color Supported:   16.7 Million Colors
Native Contrast Ratio:   3,000:1
Brightness:   250 cd/m²

Audio

Speakers:   Yes

Touchscreen Information

Touchscreen Type:   Infrared
Multi-touch Screen:   Yes
Number of Simultaneous Touchpoints:   10

Interfaces/Ports

HDMI:   Yes
USB:   Yes
VGA:   Yes
DisplayPort:   Yes
Number of HDMI Inputs:   1
Number of USB Ports:   3
Number of DisplayPorts:   1

Built-in Devices

Built-in Devices:   USB Hub

Power Description

Operating Power Consumption:   21.50 W
Standby Power Consumption:   500 mW

Physical Characteristics

VESA Mount Compatible:   Yes
VESA Mount Standard:   100 x 100
Product Color:   Black
Height:   13.70" (348 mm)
Width:   22.48" (571 mm)
Depth:   2.40" (61 mm)
Height with Stand:   13.70" (348 mm)
Width with Stand:   22.48" (571 mm)
Depth with Stand:   3.98" (101 mm)
Weight (Approximate):   4.67 kg
Weight with Stand (Approximate):   5.22 kg

Miscellaneous

Package Contents:

• TD2423d - 24" Display, MVA Panel, 1920 x 1080 Resolution
• Power Cable
• HDMI cable
• USB Type B Uplink Cable
• Quick Start Guide

Certifications & Standards:

cTUVus

Platform Supported:   Mac
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   EPEAT
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
