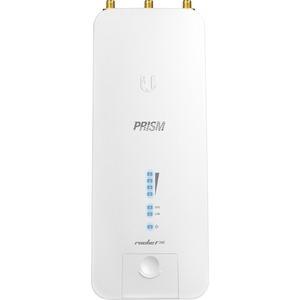

Ubiquiti Rocket Prism AC R2AC-PRISM IEEE 802.11ac 330 Mbit/s Wireless Access Point

UPC Code: 817882027274
Manufacturer Warranty: None
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: https://rma.ubnt.com/
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   Ubiquiti Networks, Inc
Manufacturer Website Address:   www.ubnt.com
Brand Name:   Ubiquiti
Product Line:   Rocket Prism AC
Product Model:   R2AC-PRISM
Product Name:   airMAX ac BaseStation with airPrism Technology
Marketing Information:

Management Wi-Fi Radio

The Rocket^® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The Rocket^® Prism AC features enhanced protection against ESD events.

GPS Synchronization

The Rocket^® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Revolutionary Filtering Technology

Ubiquiti's patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

Designed for High Performance

The Rocket^® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView^® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

Full-Band 5 and 2.4 GHz Coverage

The Rocket^® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.

Now with airOS^®8

airOS^®8 provides powerful features, including airMAX^® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Product Type:   Wireless Access Point

Technical Information

Wireless LAN Standard:   IEEE 802.11ac
Frequency Band:   2.40 GHz
Wireless Transmission Speed:   330 Mbit/s

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE (RJ-45) Port:   Yes

Physical Characteristics

Height:   9.06" (230 mm)
Width:   3.46" (88 mm)
Depth:   1.57" (40 mm)
Weight (Approximate):   440 g
