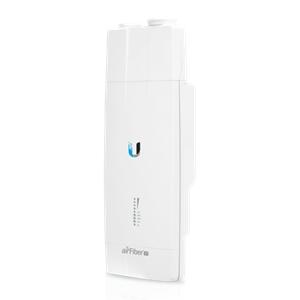

Ubiquiti Licensed Backhaul Radio

UPC Code: 810010071613
Manufacturer Warranty: 1 Year
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: None
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Ubiquiti Networks, Inc
Manufacturer Part Number:   AF-11
Manufacturer Website Address:   www.ubnt.com
Brand Name:   Ubiquiti
Product Line:   airFiber
Product Model:   AF-11
Product Name:   Licensed Backhaul Radio
Marketing Information:   Ubiquiti continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing, by introducing the airFiber® AF-11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.

The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.

For maximum flexibility, the airFiber AF-11 works with the Ubiquiti® AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).

Groundbreaking Design

The AF-11 gives exceptional performance compared to other 11 GHz radios in its price range. Unlike other products that use adaptations of Wi-Fi-based designs, the AF-11 is specially engineered for the 11 GHz band, with a custom modem and radio design optimized for the efficient transport of data.

Product Advantages

True Full-Duplex Design
The AF-11 offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.

Ultra-Low Latency
Overall customer experience and system capacity are enhanced with FDD performance.

Enhanced Robustness
The AF-11 uses managed licensed frequencies to create a robust, interference-free link that provides the maximum possible throughput.

Extended Range
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.

Channel Configuration

Optimized Channels

The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.

Reconfigurable Duplexers

The AF-11 features a unique modular duplexer design to suit multiple frequency configurations.

Each AF-11 radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high-band or low-band use in the 10.7 - 11.7 GHz allocation.

Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

Highest Performance Value

The compact AF-11 supports high-order constellations - up to 1024QAM - allowing it to deliver the greatest spectral efficiency in its class.

Advanced Engineering

Ubiquiti's INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.

Deployment Flexibility

The airFiber AF-11 provides a number of deployment options including:

Power Source Options

Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.

• PoE power can be supplied on the DATA port, using the provided PoE adapter.
• DC power can be supplied using the terminal block.

Versatile, Ruggedized N-Type Connectors

N-connectors allow the AF-11 to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas.

Specially designed silicone boots provide a weatherproof barrier against dust and moisture.

Product Type:   Radio Modem

Interfaces/Ports

Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   1

Network & Communication

Ethernet Technology:   Gigabit Ethernet

Physical Characteristics

Height:   12.87" (327 mm)
Width:   4.41" (112 mm)
Depth:   3.39" (86 mm)
Weight (Approximate):   2.27 kg

Miscellaneous

Package Contents:

• Licensed Backhaul Radio
• 50VDC, 1.2A PoE Gigabit Adapter
• Pole Mount

Additional Information:

• RF Connectors: 4 x SMA Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
• Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block
• Max. Power Consumption: 36W
• Supported Voltage Range: 38-56VDC
• Automatic Transmit Power Control (ATPC): Yes
• Operating Temperature: -40 to 55° C (-40 to 131° F)
• Management Port: 1 x 10/100 Ethernet Port
• Processor: INVICTUS 2 IC
• Maximum Throughput: 1.2+ Gbps
• Maximum Range: 300+ km
• Encryption: 128-bit AES
• OS: airOS® F
• Wireless Modes: SISO/MIMO
• MTU (Maximum Transmission Unit): Up to 9600
• Frequency Range: 10.7-11.7 GHz
• Max. Conducted TX Power: 30 dBm (Dependent on Regulatory Region)
• Frequency Accuracy: ± 2.0 ppm
• Channel Bandwidth: 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable

Certifications & Standards:

• CE
• FCC
• IC

Warranty

Limited Warranty:   2 Year
