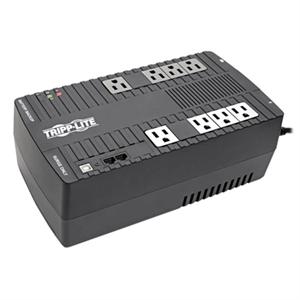

Tripp Lite UPS 550VA 300W Desktop Battery Back Up AVR Compact 120V USB RJ11 50/60Hz

UPC Code: 037332211453
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 4
Country of Origin: UNITED STATES

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   AVR550U
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Series:   AVR
Product Name:   AVR 550VA Desktop UPS
Marketing Information:

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

More from the Manufacturer

Packaged Quantity:   1 Each
Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
AVR Range:   Boost +18% / Buck -15%
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Number of Battery & Surge Outlets:   4
Number of Surge-only Outlets:   4
Dataline Protection:   RJ-11
Cord Length:   6 ft
Transfer Time:   6 ms
EMI/RFI Noise Filter:   Yes
Phase:   Single Phase
Energy Saving:   Greater than 95% efficiency - GREEN UPS
Application/Usage:   ATM
Application/Usage:   Blu-ray Player
Application/Usage:   Computer
Application/Usage:   Digital Signage
Application/Usage:   Gaming Console
Application/Usage:   Home Theater
Application/Usage:   Home/Office
Application/Usage:   Media Center
Application/Usage:   Printer
Application/Usage:   Router
Application/Usage:   Security System
Application/Usage:   Speaker
Application/Usage:   TV

Power Description

Load Capacity:   550 VA/300 W
Input Voltage:   120 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Input Current:   12 A
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Pulse-width Modulated Sine Wave
Surge Energy Rating:   316 J

Management

Alarm:   Battery Backup
Alarm:   Fault
Alarm:   Low Battery
Alarm:   Overload
Alarm:   Replace Battery

Controls/Indicators

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

DC System Voltage:   12 V DC
Backup/Run Time (Full Load):   2 Minute
Backup/Run Time (Half Load):   9 Minute
Battery Life:   6 Year
Typical Battery Recharge Time:   8 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)

Physical Characteristics

Product Color:   Black
Height:   4.33" (109.98 mm)
Width:   6.40" (162.56 mm)
Depth:   12" (304.80 mm)
Form Factor:   Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):   6.21 kg

Miscellaneous

Package Contents:

• AVR 550VA Desktop UPS
• USB cable
• Owner's manual

Additional Information:

• Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
• High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
• Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
• Switches: Combination power off / on / self-test push button switch
• Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
• WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
• Supports entry-level PC systems up to 17 minutes during blackout conditions
• Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation
• 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
• 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
• 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
• HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux

Certifications & Standards:

• Tested to UL1778 (USA)
• cUL1778 (Canada)
• NOM (Mexico)
• FCC Class B (Emissions)
• FCC Part 68
• Industry Canada (Telecommunications)

Software Included:   PowerAlert UPS monitoring software
Recycled:   No
Assembly Required:   No
Environmental Certification:   RoHS
Country of Origin:   Vietnam

Warranty

Limited Warranty:   3 Year Lifetime
Additional Warranty Information:

2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
