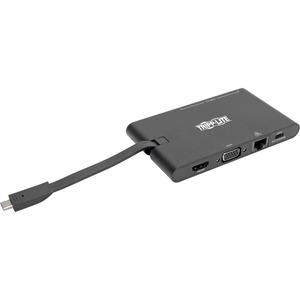

Tripp Lite U442-DOCK3-B Docking Station

UPC Code: 037332213495
Manufacturer Warranty: 1 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   U442-DOCK3-B
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Model:   U442-DOCK3-B
Product Name:   U442-DOCK3-B Docking Station
Marketing Information:   USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport WorkstationThis USB-C dock with PD Charging expands the potential of your Chromebook or Windows laptop's USB-C or Thunderbolt 3 port. It's ideal for transmitting 4K video and digital audio to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging 3.0-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more-all at the same time
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video SignalsBy connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers

Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI MonitorTo send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the corresponding port to the display using an HDMI cable (sold separately). The HDMI port supports Ultra HD video resolutions up to 3840 x 2160 (4Kx2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one monitor may be connected at a time. A DVI display may be connected to the HDMI port using an HDMI to DVI adapter (sold separately).

USB Ports Connect Keyboards, Thumb Drives and Other PeripheralsThe two USB-A hub ports and single USB-C data port accept USB peripherals, such as flash drives, mice, keyboards and printers, and share a maximum 10W (5V 2A) of power. They support fast USB 3.2 Gen 1 data transfer rates up to 5Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device

PD Charging Port Charges the Connected Notebook, Tablet or Other DeviceThe USB-C port also supports Power Delivery (PD) 3.0 charging of connected PD Charging-compliant devices, such as Chromebooks, Kindles, iPads and Android smartphones. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5Gbps

Accesses a Wired Gigabit Ethernet NetworkThe RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000Mbps Ethernet speeds for fast data transfers

Allows External Memory AccessThe memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Only one memory card slot can be used at a time

Built-In USB-C Cable Connects in Either DirectionUnlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable tucks away beneath the compact unit for safe carrying in a pocket, briefcase or laptop bag

Ready to Use Right Out of the PackageThe plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no drivers or external power source. The compact unit fits easily into a laptop bag for connecting on the go
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook/Tablet PC/Desktop PC/Smartphone

Interfaces/Ports

Host Interface:   USB 3.0 Type C
Total Number of USB Ports:   4
Number of USB 3.0 Ports:   2
Network (RJ-45):   Yes
VGA:   Yes
HDMI:   Yes
Thunderbolt:   Yes

Power Description

Maximum Power Supply Wattage:   100 W

Physical Characteristics

Height:   0.55" (13.97 mm)
Width:   4.80" (121.92 mm)
Depth:   2.80" (71.12 mm)
Weight (Approximate):   90.7 g

Miscellaneous

Package Contents:

• U442-DOCK3-B Docking Station
• Owner's Manual

Compatibility:   Notebooks:

• Apple MacBook
• Google Chromebook

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Vietnam

Warranty

Limited Warranty:   3 Year
