Tripp Lite Surge Protector Rackmount 14 Outlet 15' Cord 3000 Joules 1U RM - Receptacles: 14 x NEMA 5-15R - 3000J

UPC Code: 037332100245
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 6
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   DRS-1215
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Name:   DRS-1215 14 Outlets 120V Surge Suppressor
Marketing Information:

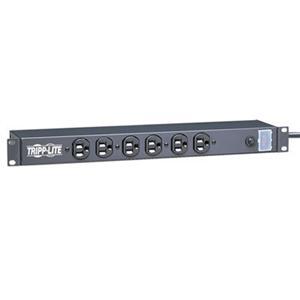

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15-ft. (4.57 m) AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 14 NEMA5-15R (6 front & 8 rear)

ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)

SUPPRESSION: AC: 140V RMS Clamping/3000 joules

FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Features

• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
• 3000 joules AC surge suppression with EMI/RFI filtering
• 14 NEMA 5-15R output receptacles (6 front/8 rear)
• 15-ft. (4.57 m) AC cord with NEMA 5-15P straight-in plug connection
• Diagnostic LED confirms suppressor operation
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15 amp capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility

Product Type:   Surge Suppressor/Protector

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacles:   14 x NEMA 5-15R
Protection Type:   Surge

Power Description

Input Voltage:   120 V AC
Output Voltage:   120 V AC
Maximum Line Current:   15 A
Power Handling:   1.80 kVA
Surge Energy Rating:   3000 J
Circuit Breaker:   Yes

Physical Characteristics

Product Color:   Black
Product Material:   Metal
Power Cord/Cable Length:   15 ft
Height:   1.75" (44.45 mm)
Width:   17.50" (444.50 mm)
Depth:   4" (101.60 mm)
Form Factor:   Rack-mountable
Weight (Approximate):   2.09 kg
Shipping Height:   9.30" (236.22 mm)
Shipping Width:   2.50" (63.50 mm)
Shipping Depth:   20.40" (518.16 mm)
Shipping Weight (Approximate):   2.49 kg

Miscellaneous

Package Contents:

• DRS-1215 14 Outlets 120V Surge Suppressor
• Warranty information
• Instruction manual

Additional Information:

• Snap-in switch guard prevents accidental turn off

Compatibility:

• Ideal for protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio/video, security and sound reinforcement

Certifications & Standards:

• UL1449 (Let through rating 330V)
• cUL
• IEEE 587 category A and B specifications

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   Lifetime
