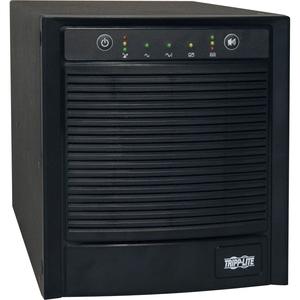

Tripp Lite SmartPro SMART2200SLT 2200VA Tower UPS

UPC Code: 037332125774
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SMART2200SLT
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartPro
Product Model:   SMART2200SLT
Product Name:   SmartPro SMART2200SLT 2200VA Tower UPS
Marketing Information:

2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and slot for Network Management Card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. PowerAlert UPS management software is available via free download. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-20P
Receptacle Type:   NEMA 5-15/20R
Receptacle Type:   NEMA L5-20R
Receptacle Detail:   1 x NEMA L5-20R
Receptacle Detail:   6 x NEMA 5-15/20R
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description

Load Capacity:   2.20 kVA/1.60 kW
Input Voltage:   120 V AC
Output Voltage:   120 V AC
Input Current:   14.80 A

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Modem (RJ-11):   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   5 Minute
Backup/Run Time (Half Load):   13 Minute
Hot Swappable:   Yes

Physical Characteristics

Height:   10.50" (266.70 mm)
Width:   8.88" (225.43 mm)
Depth:   12.50" (317.50 mm)
Form Factor:   Tower
Weight (Approximate):   25.85 kg

Miscellaneous

Package Contents:

• SmartPro SMART2200SLT 2200VA Tower UPS
• SMART2200SLT UPS System
• PowerAlert Software and cabling
• Owner's manual with warranty information

Additional Information:

• Ideal for protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VoIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/Internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously regulated output power
• Switches: 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions

Certifications & Standards:   Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), RoHS compliant, Class A (Emissions), NOM (Mexico)
Software Included:   PowerAlert Software
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
