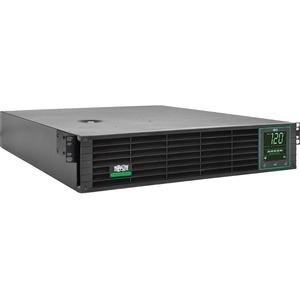

Tripp Lite SmartPro SMART2200RM2UL 2200VA UPS

UPC Code: 037332192646
Manufacturer Warranty: 3 Year Limited
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1235
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SMART2200RM2UL
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartPro
Product Model:   SMART2200RM2UL
Product Name:   SmartPro SMART2200RM2UL 2200VA UPS
Marketing Information:   Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
• Audible alarm signals loss of utility power, overload and low battery
• 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
• 570-joule surge suppression rating
• 0.9 power factor rating
• 97% line-mode efficiency rating saves money in energy costs

Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery

• More than 2x the service life
• Up to 3x more charge/discharge cycles
• Recharges to 100% capacity in less than 2 hr.
• Weighs 60% less, reducing overall UPS weight
• Supports half load up to 11.7 min. and full load up to 5.1 min.

2 Load Banks with Switchable Outlets

• Can control 2 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

Interactive LCD Screen

• Front-panel LCD with detailed UPS and site power status and operating data
• Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

• Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at <li">www.tripplite.com/poweralert
• <li">EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

Backed by Tripp Lite's Ultimate Lifetime Insurance

• $250,000 Ultimate Lifetime Insurance covers any connected components

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-20P
Receptacle Type:   NEMA 5-15/20R
Receptacle Type:   NEMA 5-20
Receptacle Detail:   4 x NEMA 5-15/20R
Receptacle Detail:   4 x NEMA 5-20
Protection Type:   Over Voltage
Protection Type:   Under Voltage
Emergency Power OFF:   Yes
Transfer Time:   5 ms
EMI/RFI Noise Filter:   Yes
Phase:   Single Phase
Application/Usage:   Network Storage Device
Application/Usage:   Server

Power Description

Load Capacity:   2.20 kVA/1.92 kW
Input Voltage:   120 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Input Current:   16 A
Waveform Type:   Pure Sine Wave
Surge Energy Rating:   570 J
Circuit Breaker:   Yes

Management

Alarm:   Low Battery
Alarm:   Overload
Alarm:   Power Failure
Alarm:   Remote Shutdown
Alarm:   UPS Fault
Alarm:   UPS StartUp

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   5.10 Minute
Backup/Run Time (Half Load):   11.70 Minute
Typical Battery Recharge Time:   1.40 Hour
Hot Swappable:   Yes

Environmental Conditions

Maximum Operating Temperature:   122°F (50°C)
Sound Emission (A-Weighted):   45 dB(A)
Thermal Dissipation:   1343 BTU/h

Physical Characteristics

Height:   3.43" (87 mm)
Width:   19.45" (494 mm)
Depth:   17.32" (440 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   18.95 kg

Miscellaneous

Package Contents:

• SmartPro SMART2200RM2UL 2200VA UPS
• USB cable
• DB9 cable
• EPO cable
• Rack-mounting hardware
• Owner's manual

Certifications & Standards:

• UL1778 (USA)
• Tested to CSA (Canada)
• Tested to NOM (Mexico)
• Meets FCC Part 15 Category A (EMI)

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   United States

Warranty

Limited Warranty:   5 Year
