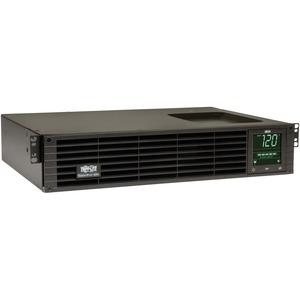

Tripp Lite SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS

UPC Code: 037332178022
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SMART1500RMXLN
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartPro
Product Model:   SMART1500RMXLN
Product Name:   SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS
Marketing Information:   Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and fault conditions
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 0.9 power factor rating
• 570-joule surge suppression rating

Reliable Battery Backup with Expandable Runtime

• Supports half load up to 14 min. and full load up to 4.9 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs
• Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U

Pre-Installed WEBCARDLX Network Interface

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
• Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

Reduce Service Calls with Auto Probe Autonomous Device Management

• Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)

8 NEMA 5-15R Outlets in 2 Load Banks

• 4 outlets are switchable to remotely reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

Interactive LCD Screen

• Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
• Rotates for easy viewing in rack-mount or tower configurations

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software (available via free download from www.tripplite.com/poweralert)
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   8 x NEMA 5-15R
Emergency Power OFF:   Yes
Transfer Time:   4 ms

Power Description

Load Capacity:   1.50 kVA/1.35 kW
Input Voltage:   120 V AC
Output Voltage:   120 V AC

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   4.90 Minute
Backup/Run Time (Half Load):   14 Minute
Typical Battery Recharge Time:   4.50 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.45" (87.63 mm)
Width:   17.30" (439.42 mm)
Depth:   13.45" (341.63 mm)
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   21.09 kg

Miscellaneous

Package Contents:

• SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS
• PowerAlert Software CD
• USB Cable
• Serial Cable
• EPO Cable
• 4 Post Installation Kit
• Owner's Manual
• Network Interface Card

Certifications & Standards:

• UL1778
• CSA
• NOM
• FCC Part 15 Category B (EMI)

Software Included:   PowerAlert Software
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
