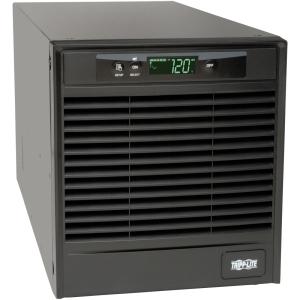

Tripp Lite SmartOnline SU2200XLCD 2200VA Tower UPS

UPC Code: 037332174659
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SU2200XLCD
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartOnline
Product Name:   SmartOnline SU2200XLCD 2200VA Tower UPS
Marketing Information:   Ideal for Protection of Mission-Critical EquipmentThe SU2200XLCD provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring a 2200VA/1800W capacity, 7 AC outlets (6 5-15/20R, 1 L5-20R), a 10-ft. cord with 5-20P plug, USB/DB9 ports and a slot for an optional network management card option, the SU2200XLCD offers a complete power protection solution for medium- to large-size servers, storage devices, telecom systems and other mission-critical equipment. True On-Line Operation with Pure Sine Wave Output and Zero Transfer TimeThe SU2200XLCD provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Zero transfer time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive effects of blackouts and severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types. Individually Controllable OutletsThe SU2200XLCD includes 2 load banks of 3 outlets each that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment. Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU2200XLCD features a large internal battery set that provides 13 minutes of battery support for a half load (900 watts) and 4.5 minutes for a full load (1800 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. Intelligent battery management system extends battery life. For mission-critical applications demanding continuous uptime, the fully scalable SU2200XLCD can provide expandable runtime with optional external battery packs BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. High Power Factor and Highly Efficient Operation Reduces BTU OutputThe SU2200XLCD features a high 0.82 power factor and an optional, highly efficient economy mode setting that can significantly reduce a facility's energy costs. In economy mode, the UPS operates with 97% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity. AC Line and Tel/Ethernet Surge SuppressionA sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SU2200XLCD features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone or network connection (cable not included).
Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA 5-20P
Receptacle Type:   NEMA 5-15/20R
Receptacle Type:   NEMA L5-20R
Receptacle Detail:   1 x NEMA L5-20R
Receptacle Detail:   6 x NEMA 5-15/20R
Bypass Switch:   Automatic
Emergency Power OFF:   Yes
Transfer Time:   0 ns

Power Description

Load Capacity:   2.20 kVA/1.80 kW
Input Voltage:   100 V AC
Input Voltage:   110 V AC
Input Voltage:   115 V AC
Input Voltage:   120 V AC
Input Voltage:   127 V AC
Output Voltage:   100 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Output Voltage:   127 V AC

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   4.50 Minute
Backup/Run Time (Half Load):   13 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   10.20" (259.08 mm)
Width:   9" (228.60 mm)
Depth:   19.50" (495.30 mm)
Form Factor:   Tower
Weight (Approximate):   24 kg

Miscellaneous

Package Contents:

• SmartOnline SU2200XLCD 2200VA Tower UPS
• PowerAlert Software CD
• USB and DB9 Cabling
• Owner's Manual with Warranty Information
• EPO (Emergency Power Off) Cabling

Certifications & Standards:

• UL1778
• CSA
• NOM
• FCC Part 15
• EMI

Software Included:   PowerAlert Software
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
