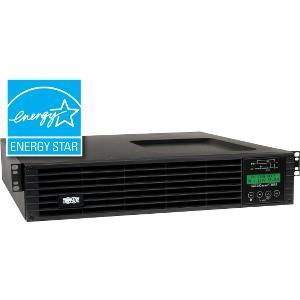

Tripp Lite SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS

UPC Code: 037332168610
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SU1500RTXLCD2U
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartOnline
Product Model:   SU1500RTXLCD2U
Product Name:   SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
Marketing Information:   Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss This 100/110/120/127V 50/60 Hz UPS system with IGBT technology maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 1350W capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer to battery mode in on-line double-conversion mode, the SmartOnline® SU1500RTXLCD2U double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment. Individually Controllable Load Banks Let You Access and Control Outlets Remotely Six NEMA 5-15R outlets are split evenly into two switchable three-outlet load banks, allowing you to reboot select components or shed loads remotely. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery provides 14 minutes of support at half load (675W) and 4.2 minutes at full load (1350W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V24-2U (sold separately). The intelligent battery management system with temperature-compensated charging extends battery life. ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD features nine selectable screens of UPS data (including load, voltage and battery data) and 16 screens of configuration and setup options. LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, ECO mode operation, bypass mode operation and AC output status. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.
Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Bypass Switch:   Automatic
Emergency Power OFF:   Yes
Transfer Time:   0 ns

Power Description

Load Capacity:   1.50 kVA/1.35 kW
Input Voltage:   110 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Output Voltage:   127 V AC

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   4.20 Minute
Backup/Run Time (Half Load):   14 Minute
Typical Battery Recharge Time:   3 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.50" (88.90 mm)
Width:   17.50" (444.50 mm)
Depth:   18.50" (469.90 mm)
Rack Height:   2U
Form Factor:   Rack/Tower
Weight (Approximate):   20.50 kg

Miscellaneous

Package Contents:

• SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
• PowerAlert Software CD
• USB Cable
• Serial Cable
• EPO Cable
• 4 Post Rackmount Installation Kit
• Instruction Manual

Certifications & Standards:

• CSA
• UL1778
• FCC Part 15 Category A (EMI)

Software Included:   PowerAlert Software
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
