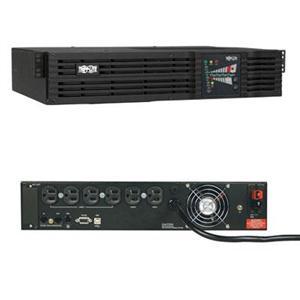

Tripp Lite SmartOnline SU1000RTXL2Ua 1000VA Rackmountable/Tower UPS

UPC Code: 037332125958
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: UNITED STATES

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SU1000RTXL2UA
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartOnline
Product Model:   SU1000RTXL2Ua
Product Name:   SmartOnline SU1000RTXL2Ua 1000VA Rackmountable/Tower UPS
Marketing Information:

1000VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. 3-stage metered current monitoring and battery charge status LEDs.

Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Bypass Switch:   Automatic
Emergency Power OFF:   Yes

Power Description

Load Capacity:   1 kVA/800 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   4.50 Minute
Backup/Run Time (Half Load):   14 Minute
Typical Battery Recharge Time:   6 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.50" (88.90 mm)
Width:   17.50" (444.50 mm)
Depth:   13.50" (342.90 mm)
Rack Height:   2U
Form Factor:   Rack/Tower
Weight (Approximate):   18.60 kg

Miscellaneous

Package Contents:

• SmartOnline SU1000RTXL2Ua 1000VA Rackmountable/Tower UPS
• SU1000RTXL2Ua Online Double-Conversion UPS System
• PowerAlert Software and cabling
• Mounting hardware for 4 post rack enclosures
• Instruction manual with warranty information

Additional Information:

• Two controllable load banks support automated load shedding and remote reboot on demand of locked network devices
• Supports extended runtime with optional external battery pack(s)
• AC suppression response time: Instantaneous
• Cooling method: Built-in cooling fan
• Cold Start Capable

Certifications & Standards:

• UL1778
• CSA
• NOM
• Class B (EMI)

Software Included:   PowerAlert Software
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
