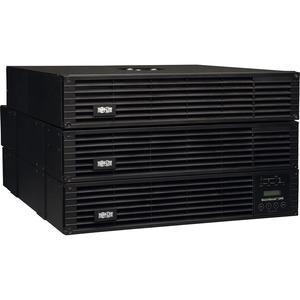

Tripp Lite SmartOnline EZ SU6000RT4UTF 6000 VA Rack mountable UPS

UPC Code: 037332157102
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SU6000RT4UTF
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   SmartOnline
Product Series:   EZ
Product Model:   SU6000RT4UTF
Product Name:   SmartOnline EZ SU6000RT4UTF 6000 VA Rack mountable UPS
Marketing Information:

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UTF provides the highest level of protection available for mission-critical equipment from all power problems. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, providing ultimate protection. The SU6000RT4UTF has a 6kVA/5400W capacity and 16 AC outlets (4 5-15R; 8 5-15/20R; 2 L6-20R; 2 L6-30R). Using the 2U transformer, the SU6000RT4UTF can support both low- and high-voltage equipment. An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The SU6000RT4UTF features a USB port and a DB9 port that, when used with Tripp Lite's included PowerAlert software, provide comprehensive network power monitoring and control. An optional SNMPWEBCARD accessory can enable the UPS to operate as an IP managed device.

Product Type:   Double Conversion Online UPS

Technical Information

Plug/Connector Type:   NEMA L6-30P
Receptacle Type:   NEMA 5-15/20R
Receptacle Type:   NEMA 5-15R
Receptacle Type:   NEMA L6-20R
Receptacle Type:   NEMA L6-30R
Receptacle Detail:   2 x NEMA 5-15/20R
Receptacle Detail:   2 x NEMA L6-20R
Receptacle Detail:   4 x NEMA L6-30R
Receptacle Detail:   8 x NEMA 5-15R
Bypass Switch:   Automatic
Bypass Switch:   Manual
Emergency Power OFF:   Yes

Power Description

Load Capacity:   6 kVA/5.40 kW
Input Voltage:   208 V AC
Input Voltage:   240 V AC
Output Voltage:   120 V AC
Output Voltage:   208 V AC
Output Voltage:   240 V AC
Input Current:   31.90 A

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   2 Minute
Backup/Run Time (Half Load):   8.50 Minute
Typical Battery Recharge Time:   6 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   6.85" (173.99 mm)
Width:   17.50" (444.50 mm)
Depth:   20.07" (509.78 mm)
Rack Height:   6U
Form Factor:   Rack-mountable
Weight (Approximate):   52.71 kg

Miscellaneous

Package Contents:

• SmartOnline EZ SU6000RT4UTF 6000 VA Rack mountable UPS
• PowerAlert Software Suite CD
• Rail Kit
• USB Cable
• Serial Cable
• EPO Cable

Certifications & Standards:

• UL1778
• FCC Part 15 Category A
• EC 61000-4-5 1995 B Surge Immunity

Software Included:   PowerAlert Software Suite
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
