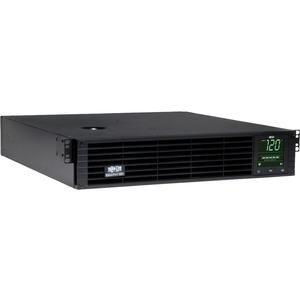

Tripp Lite SMART3000RM2UN UPS System with Pre-installed WEBCARDLX

UPC Code: 037332177902
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   SMART3000RM2UN
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Series:   SmartPro
Product Model:   SMART3000RM2UN
Product Name:   SMART3000RM2UN UPS System with Pre-installed WEBCARDLX
Marketing Information:

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available for free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Product Type:   Line-interactive UPS

Technical Information

Plug/Connector Type:   NEMA L5-30P
Receptacle Type:   NEMA 5-15/20R
Receptacle Type:   NEMA L5-30R
Receptacle Detail:   1 x NEMA L5-30R
Receptacle Detail:   8 x NEMA 5-15/20R
Emergency Power OFF:   Yes
Transfer Time:   5 ms

Power Description

Load Capacity:   3 kVA/2.25 kW
Input Voltage:   120 V AC
Output Voltage:   120 V AC

Management

Network Management:   SNMP Manageable

Interfaces/Ports

Serial Port:   Yes
USB:   Yes

Battery Information

Backup/Run Time (Full Load):   3.50 Minute
Backup/Run Time (Half Load):   10 Minute
Typical Battery Recharge Time:   4.50 Hour
Hot Swappable:   Yes

Physical Characteristics

Height:   3.50" (88.90 mm)
Width:   17.50" (444.50 mm)
Depth:   19.50" (495.30 mm)
Rack Height:   2U
Form Factor:   Rack/Tower
Weight (Approximate):   28.49 kg

Miscellaneous

Package Contents:

• SMART3000RM2UN UPS System with Pre-installed WEBCARDLX
• PowerAlert Software CD
• USB Cable
• Serial Cable
• EPO Cable
• 4 Post Installation Kit
• Instruction Manual

Certifications & Standards:

• UL1778
• CSA
• NOM
• FCC Part 15 Category B (EMI)

Software Included:   PowerAlert Software
Environmentally Friendly:   Yes
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
