Tripp Lite NG8POE Ethernet Switch

UPC Code: 037332194787
Manufacturer Warranty: Limited Lifetime
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 5
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   NG8POE
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Model:   NG8POE
Product Name:   NG8POE Ethernet Switch
Marketing Information:

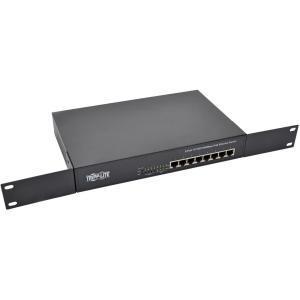

The NG8POE 8-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.

Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this energy-efficient switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 140W (up to 70W per port bank). Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

This unmanaged switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

The NG8POE supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. The detachable five-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   8
Uplink Port:   No
Modular:   No
Stack Port:   No
Port/Expansion Slot Details:   8 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T

Network & Communication

Layer Supported:   2

Management & Protocols

Manageable:   No

Power Description

Power Source:   Power Supply
Redundant Power Supply Supported:   No

Physical Characteristics

Compatible Rack Unit:   1U
Form Factor:   Desktop
Form Factor:   Rack-mountable
Height:   1.73" (43.94 mm)
Width:   11.02" (279.91 mm)
Depth:   7.09" (180.09 mm)
Weight (Approximate):   1.86 kg

Miscellaneous

Package Contents:

• NG8POE Ethernet Switch
• Detachable AC power cord with NEMA 5-15P plug, 5 ft.
• 2 x Mounting brackets
• 8 x Screws
• 4 x Rubber feet
• Owner's manual

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   5 Year
