Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - Steel Housing

UPC Code: 037332150776
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 1
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   B020-U08-19-K
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   NetDirector
Product Model:   B020-U08-19-K
Product Name:   NetDirector B020-U08-19-K Rackmount LCD with KVM
Marketing Information:

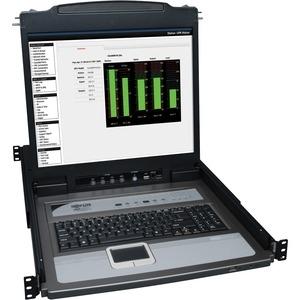

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external m ouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Product Type:   LCD Rack Console

Technical Information

KVM Switch:   Yes
Number of Computers Supported:   8
Daisy Chain:   Yes
Device Type:   LCD Rack Console

Display & Graphics

Screen Size:   19"
Display Screen Type:   LCD
Screen Mode:   SXGA
Screen Resolution:   1280 x 1024

Input Devices

Pointing Device Type:   TouchPad

Interfaces/Ports

USB:   Yes
Number of USB Ports:   2

Physical Characteristics

Height:   1.75" (44.45 mm)
Width:   17" (431.80 mm)
Depth:   27" (685.80 mm)
Weight (Approximate):   13.88 kg

Miscellaneous

Package Contents:

• NetDirector Console RM LCD KVM Switch
• 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits
• RJ11 to DB9 Firmware Upgrade Cable
• C13 to 5-15P Power Cord
• CD with Owner's Manual
• Quick Start Guide
• Grounding Wire
• Rackmount Hardware

Certifications & Standards:   UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   1 Year
