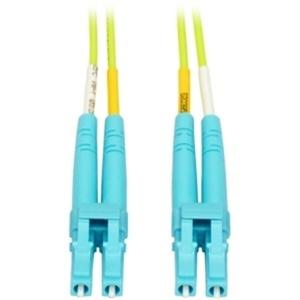

Tripp Lite N820-03M-OM4 Fiber Optic Duplex Patch Cable

UPC Code: 037332165275
Manufacturer Warranty: Limited Lifetime
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   N820-03M-OM4
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Model:   N820-03M-OM4
Product Name:   N820-03M-OM4 Fiber Optic Duplex Patch Cable
Marketing Information:

Tripp Lite introduces it's new OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 40/100Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.

Product Type:   Network Cable

Technical Information

Cable Type:   Fiber Optic
Cable Characteristic:   Patch Cable
Fiber Optic Mode:   Multi-mode
Core/Cladding Diameter:   50/125 µm
Cable Length:   10 ft
Connector Type on First End:   LC Network - Male
Connector on First End Details:   2 x LC Network - Male
Connector Type on Second End:   LC Network - Male
Connector on Second End Details:   2 x LC Network - Male
Jacket Type:   LSZH
Device Supported:   Network Device

Physical Characteristics

Product Color:   Seawater

Miscellaneous

Certifications & Standards:

• OM4 Rated
• TIA LOMMF

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   Lifetime
