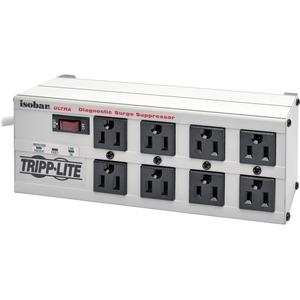

Tripp Lite Isobar Premium ISOBAR825ULT 8-Outlet Surge Suppressor, 25' Cord

UPC Code: 037332138286
Manufacturer Warranty: Limited Lifetime
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1235
Master Pack Qty: 12
Country of Origin: CHINA

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   ISOBAR825ULTRA
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Line:   Isobar
Product Model:   ISOBAR825ULTRA
Product Name:   Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor
Marketing Information:

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR825ULTRA offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 25 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 8 NEMA5-15R/25-ft. AC line cordELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/97,000 ampsFORMAT: Corded all-metal strip with transformer spaced outlets

Product Type:   Surge Suppressor/Protector

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacles:   8 x NEMA 5-15R

Power Description

Input Voltage:   120 V AC
Output Voltage:   120 V AC
Maximum Line Current:   15 A
Maximum Surge Current:   97 kA
Power Handling:   1.44 kVA
Surge Energy Rating:   3840 J

Physical Characteristics

Power Cord/Cable Length:   25 ft
Height:   2.50" (63.50 mm)
Width:   9" (228.60 mm)
Depth:   3.50" (88.90 mm)
Weight (Approximate):   1.50 kg
Shipping Height:   3.30" (83.82 mm)
Shipping Width:   7.90" (200.66 mm)
Shipping Depth:   12.50" (317.50 mm)
Shipping Weight (Approximate):   2.31 kg

Miscellaneous

Package Contents:

• Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor
• Set of 4 Outlet Safety Covers
• Instruction Manual with Warranty Information

Compatibility:

• Computers
• Networks
• CAD/CAM/CAE Workstations
• Internetworking Accessories
• Telecommunications Systems
• Point of Sale Equipment
• Audio/Video & Home Theater Systems

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   Lifetime
