Tripp Lite IS1000

UPC Code: 037332070067
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 55
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 2
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   IS1000
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Model:   IS1000

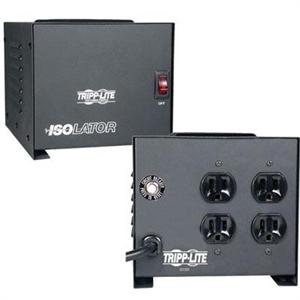

Product Name:   IS1000 Isolation Transformer
Marketing Information:   Get complete protection for sensitive devices and prevent power disruption with Tripp Lite's Isolator IS1000 Isolation Transformer. Featuring an internal isolation transformer with Faraday Shield, the IS1000 completely isolates equipment from line noise that can cause incremental but devastating equipment damage. Its 680-joule surge suppression rating protects equipment from surges and spikes caused by utility power disruptions and the operation of nearby equipment on the same circuit. Its 6-ft. power cord allows for flexibility during installation, while its built-in circuit breaker prevents dangerous circuit overloads. Its 1000-watt capacity allows it to be used with a variety of sensitive equipment. Its 4 widely spaced NEMA 5-15R outlets accommodate bulky transformers, and its lighted power switch offers convenient, one-touch power control. For peace of mind, the IS1000 features a rugged, all-metal housing.
Product Type:   Surge Suppressor/Protector

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacles:   4 x NEMA 5-15R
Protection Type:   Surge

Power Description

Input Voltage:   120 V AC
Output Voltage:   120 V AC
Maximum Line Current:   8.30 A
Power Handling:   1 kVA
Surge Energy Rating:   680 J
Circuit Breaker:   Yes

Physical Characteristics

Product Color:   Black
Power Cord/Cable Length:   6 ft
Height:   5.50" (139.70 mm)
Width:   6.25" (158.75 mm)
Depth:   8.50" (215.90 mm)
Form Factor:   External
Weight (Approximate):   10.25 kg
Shipping Height:   6.25" (158.75 mm)
Shipping Width:   13" (330.20 mm)
Shipping Depth:   7.50" (190.50 mm)
Shipping Weight (Approximate):   11.15 kg

Miscellaneous

Package Contents:

• IS1000 Isolation Transformer
• Owner's Manual

Additional Information:

• Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
• Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
• Noise Suppression Rating: 33-65dB normal mode; >80dB common mode
• Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
• Total Harmonic Distortion: less than 1%
• Transformer Type: Low impedence transformer-based line isolation transformer

Compatibility:

• Point of Sale (POS) Equipment
• Telecommunications Systems
• Diagnostic Testing and Precise Measurement Devices
• Sophisticated CAD/CAM Workstations
• Computer Networking Equipment

Certifications & Standards:   UL, cUL
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   2 Year
