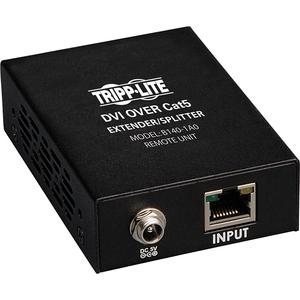

Tripp Lite DVI Over Cat5 Active Extender Remote Unit

UPC Code: 037332156631
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 20
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   B140-1A0
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Model:   B140-1A0
Product Name:   DVI Over Cat5 Active Extender Remote Unit
Marketing Information:

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

Product Type:   Video Extender Receiver

Technical Information

Connectivity Technology:   Wired
Number of Input Devices Supported:   1
Number of Output Devices Supported:   1
Maximum Operating Distance:   200 ft (60960 mm)

Video

Graphics Modes:   Full HD
Maximum Video Resolution:   1920 x 1080

Interfaces/Ports

Network (RJ-45):   Yes
DVI Out:   Yes
Number of Network (RJ-45) Ports:   1
Number of DVI Outputs:   1

Media & Performance

Media Type Supported:   Twisted Pair
Twisted Pair Cable Standard:   Category 6

Physical Characteristics

Receiver Height:   1" (25.40 mm)
Receiver Width:   2.50" (63.50 mm)
Receiver Depth:   3.60" (91.44 mm)

Miscellaneous

Package Contents:

• B140-1A0 DVI over Cat5 Active Extender Remote Unit
• Mounting Hardware
• Screwdriver for adjustment of Equalization
• External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual

Certifications & Standards:   TAA
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   1 Year
