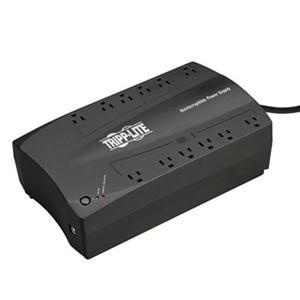

Tripp Lite AVR 750VA Desktop UPS

UPC Code: 037332211484
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 2
Country of Origin: UNITED STATES

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   AVR750U
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Series:   AVR
Product Name:   AVR 750VA Desktop UPS
Marketing Information:

AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

Packaged Quantity:   1 Each
Product Type:   Line-interactive UPS

Technical Information

AVR:   Yes
AVR Range:   Boost +18% / Buck -15%
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   12 x NEMA 5-15R
Number of Battery & Surge Outlets:   6
Number of Surge-only Outlets:   6
Dataline Protection:   RJ-11
Transfer Time:   6 ms
EMI/RFI Noise Filter:   Yes
Phase:   Single Phase
Energy Saving:   Greater than 95% efficiency - GREEN UPS
Application/Usage:   ATM
Application/Usage:   Blu-ray Player
Application/Usage:   Computer
Application/Usage:   Digital Signage
Application/Usage:   Gaming Console
Application/Usage:   Home Theater
Application/Usage:   Home/Office
Application/Usage:   Media Center
Application/Usage:   Printer
Application/Usage:   Router
Application/Usage:   Security System
Application/Usage:   TV

Power Description

Load Capacity:   750 VA/450 W
Input Voltage:   120 V AC
Output Voltage:   110 V AC
Output Voltage:   115 V AC
Output Voltage:   120 V AC
Input Current:   12 A
Input Frequency:   60 Hz
Output Frequency:   60 Hz
Waveform Type:   Pulse-width Modulated Sine Wave
Surge Energy Rating:   316 J

Management

Alarm:   Battery Backup
Alarm:   Fault
Alarm:   Low Battery
Alarm:   Overload
Alarm:   Replace Battery

Controls/Indicators

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information

DC System Voltage:   12 V DC
Backup/Run Time (Full Load):   3 Minute
Backup/Run Time (Half Load):   11 Minute
Typical Battery Recharge Time:   9 Hour
Replaceable Battery:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft (3048000 mm)

Physical Characteristics

Product Color:   Black
Height:   4.14" (105.16 mm)
Width:   7.48" (189.99 mm)
Depth:   12" (304.80 mm)
Form Factor:   Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):   7.18 kg

Miscellaneous

Package Contents:

• AVR 750VA Desktop UPS
• USB cable
• Instruction manual

Certifications & Standards:

Energy Star

Recycled:   No
Assembly Required:   No
Environmental Certification:   RoHS
Country of Origin:   Vietnam

Warranty

Limited Warranty:   3 Year Lifetime
Additional Warranty Information:

2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
