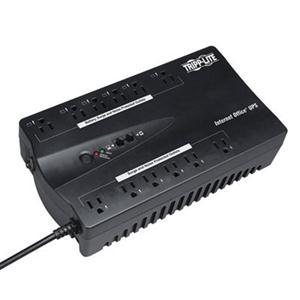

Tripp Lite 750VA 6UPS/Surge and 6 Surge UPS System

UPC Code: 037332211088
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 4
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   INTERNET750U
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Name:   750VA 6UPS/Surge and 6 Surge UPS System
Marketing Information:

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.

Packaged Quantity:   1 Each
Product Type:   Standby UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   12 x NEMA 5-15R
Number of Battery & Surge Outlets:   6
Number of Surge-only Outlets:   6
Dataline Protection:   RJ-11
Protection Type:   Black Out
Protection Type:   Brownout
Protection Type:   Line Noise
Protection Type:   Over Voltage
Protection Type:   Surge
Cord Length:   6 ft
Transfer Time:   4 ms
Application/Usage:   Audio System
Application/Usage:   Blu-ray Player
Application/Usage:   Commercial
Application/Usage:   Desktop Computer
Application/Usage:   Digital Signage
Application/Usage:   DVR
Application/Usage:   Gaming Console
Application/Usage:   Home Theater
Application/Usage:   Home/Office
Application/Usage:   Media Center
Application/Usage:   Media Player
Application/Usage:   Printer
Application/Usage:   Router
Application/Usage:   Server
Application/Usage:   TV

Power Description

Load Capacity:   750 VA/450 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Pulse-width Modulated Sine Wave
Surge Energy Rating:   420 J

Management

Alarm:   On Battery
Alarm:   Self-test Operation

Controls/Indicators

Status Indicators:   2 LEDs indicate on/off and overload/check battery

Interfaces/Ports

Modem (RJ-11):   Yes
USB:   Yes

Battery Information

Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   2.50 Minute
Backup/Run Time (Half Load):   11 Minute
Battery Life:   6 Year
Typical Battery Recharge Time:   4 Hour
Hot Swappable:   Yes

Environmental Conditions

Maximum Operating Temperature:   104°F (40°C)

Physical Characteristics

Product Color:   Black
Height:   4" (101.60 mm)
Width:   12" (304.80 mm)
Depth:   7" (177.80 mm)
Form Factor:   Ultra-compact Desk-mount
Weight (Approximate):   7.03 kg

Miscellaneous

Package Contents:

• Internet Office 750VA UPS
• USB cable and phone cord
• Instruction manual with warranty information

Additional Information:

• INTERNET750U standby UPS offers complete protection from blackouts, brownouts and surges on AC and tel/DSL dataline connections
• 12 widely spaced outlets accommodate large transformer plugs without blocking outlets
• 6 battery-supported outlets protect computers and vital system peripherals. 6 surge suppression-only outlets protect system accessories that do not require battery support
• Provides battery-derived AC output during blackouts and brownouts
• 750VA/450W power handling ability supports a variety of PCs, workstations and other sensitive electronics
• Supports entry-level PC systems up to 35 min. during blackouts
• Single-line tel/DSL surge suppression with line splitter protects two directly connected modems, fax machines or cordless phones sharing a single phone line connection
• USB port, FREE PowerAlert Software and cabling provide monitoring of site power conditions
• HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
• Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment; ideal for unattended kiosk applications
• Hot-swap battery replacement supported via battery access door
• Space-saving ultra-compact housing
• Keyhole mounting flanges enable secure wallmount installation
• $100,000 Ultimate Lifetime Insurance protects connected equipment from surge damage (USA & Canada only)

Certifications & Standards:

• UL1778 (USA)
• cUL (Canada)
• FCC Class B (emissions)
• NOM (Mexico)
• FCC Part 68 / Industry Canada (telecommunications)
• Conforms to IEEE 587 / ANSI C62.41 specifications

Software Included:   PowerAlert Software
Recycled:   No
Assembly Required:   No
Environmental Certification:   ENERGY STAR 2.0
Country of Origin:   Vietnam

Warranty

Limited Warranty:   3 Year
Additional Warranty Information:

2-year warranty; $100,000 connected equipment insurance (USA & Canada only).

Directly Connected Equipment Guarantee:   $100000
