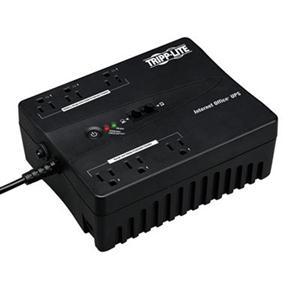

Tripp Lite 3UPS/Surge 3 Surge UPS System

UPC Code: 037332210975
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 50
Add'l Return Info: Past Exchange-Call Tripplite 773-869-1234
Master Pack Qty: 6
Country of Origin: TAIWAN

General Information

Manufacturer:   Tripp Lite by Eaton
Manufacturer Part Number:   INTERNET350U
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Name:   3UPS/Surge 3 Surge UPS System
Marketing Information:

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts, blackouts and transient surges on both AC and dial-up modem lines. Wall-mountable, ultra-compact, flat-pack UPS includes three battery supported outlets for computer, monitor and one vital system peripheral plus three additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line, RJ11 phone suppression jacks with line splitter protects up to two directly connected modems, fax machines, cordless phones or other peripherals with a standard, dial-up phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 350VA/180 watt power handling ability supports entry-level PCs for up to 15 minutes during power failures.

More from the Manufacturer

Packaged Quantity:   1 Each
Product Type:   Standby UPS

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R
Receptacle Detail:   6 x NEMA 5-15R
Dataline Protection:   RJ-11
Protection Type:   Black Out
Protection Type:   Brownout
Cord Length:   6 ft
Transfer Time:   4 ms

Power Description

Load Capacity:   350 VA/180 W
Input Voltage:   110 V AC
Output Voltage:   120 V AC
Waveform Type:   Pulse-width Modulated Sine Wave
Surge Energy Rating:   316 J

Management

Alarm:   On Battery
Alarm:   Self-test Operation

Controls/Indicators

Status Indicators:

• Line Power
• Battery Power Status

Interfaces/Ports

Modem (RJ-11):   Yes
USB:   Yes

Battery Information

Battery Chemistry:   Lead Acid
Backup/Run Time (Full Load):   2 Minute
Backup/Run Time (Half Load):   7 Minute
Battery Life:   6 Year
Typical Battery Recharge Time:   4 Hour
Hot Swappable:   Yes

Environmental Conditions

Maximum Operating Temperature:   122°F (50°C)
Sound Emission:   40 dB

Physical Characteristics

Product Color:   Black
Height:   4" (101.60 mm)
Width:   12" (304.80 mm)
Depth:   7" (177.80 mm)
Form Factor:   Ultra-compact Desk-mount
Weight (Approximate):   3.49 kg

Miscellaneous

Package Contents:

• Internet Office 350VA UPS
• UPS System
• USB communications cable
• Instruction manual with warranty information

Additional Information:

• Line mode BTU/hr. (Max.): 15.7
• Battery mode BTU/hr. (Max.): 53.2
• Cold Start: Inverter can be cold started to enable temporary AC output during a power failure
• Switches: Combination power off / on / self-test push button switch

Certifications & Standards:

• UL1778 (USA)
• cUL (Canada)
• FCC Class B (emissions)
• NOM (Mexico)
• FCC Part 68 / Industry Canada (telecommunications)
• Conforms to IEEE 587 / ANSI C62.41 specifications

Software Included:   PowerAlert Software
Assembly Required:   No
Country of Origin:   Vietnam

Warranty

Limited Warranty:   3 Year
Additional Warranty Information:

2 year warranty. $100,000connected equipment insurance (USA, Puerto Rico, & Canada Only).
