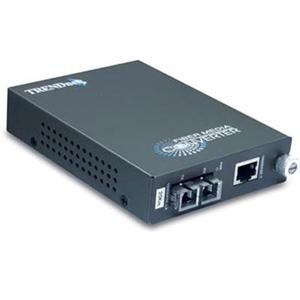

TRENDnet Intelligent 1000Base-T to 1000Base-LX/SX Single Mode SC Fiber Media Converter (20KM; 12.4Miles); Fiber to Ethernet Converter; SC Type Fiber Port; RJ-45;Lifetime Protection; TFC-1000S20

UPC Code: 710931504262
Manufacturer Warranty: LIFETIME
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info:
Master Pack Qty: 20
Country of Origin: TAIWAN

General Information

Manufacturer:   TRENDnet
Manufacturer Part Number:   TFC-1000S20
Manufacturer Website Address:   www.trendnet.com
Brand Name:   TRENDnet
Product Model:   TFC-1000S20
Product Name:   1000Base-T to 1000Base-LX Single Mode Fiber Converter (20KM)
Marketing Information:

• SC-type single-mode fiber port connects over distances of up to 20km (12.4 miles)
• 1000Base-T Gigabit copper port supports Full-Duplex mode
• Supports port level SNMP management
• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty

The TFC-1000S20 Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 20km (12.4miles). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC-Type) port.
Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode SC type fiber port
Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for Fiber port
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-1000S20
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)

Product Condition:   New
Product Type:   Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports:   2
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   1
Number of SC Ports:   1
SC Port Type:   Duplex

Media & Performance

Media Type Supported:   Optical Fiber
Media Type Supported:   Twisted Pair
Fiber Mode Supported:   Single-mode
Maximum Distance Supported:   12.4 Mile

Network & Communication

Ethernet Technology:   Gigabit Ethernet
Network Technology:   1000Base-LX
Network Technology:   1000Base-T

Power Description

Input Voltage:   7.5 V DC
Power Consumption:   7.20 W

Physical Characteristics

Form Factor:   Wall Mountable
Height:   3" (76.20 mm)
Width:   6" (152.40 mm)
Depth:   8" (203.20 mm)
Weight (Approximate):   548.8 g

Miscellaneous

Additional Information:

• Access Method: CSMA/CD
• Wavelength: 1300nm
• Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Compatibility:

16-Slot Chassis System for TFC series Fiber Converter (TFC-1600)

Certifications & Standards:

• IEEE 802.3ab
• IEEE 802.3z
• EIA/TIA-568
• FCC
• CE
• VCCI

Country of Origin:   Taiwan
NDAA Compliant:   Yes

Warranty

Limited Warranty:   3 Year Lifetime
