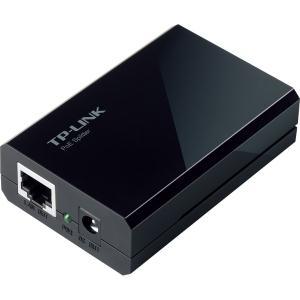

TP-Link TL-POE10R Power over Ethernet Splitter

UPC Code: 845973030490
Manufacturer Warranty: N/A
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   TL-PoE10R
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   TL-POE10R
Product Name:   TL-POE10R Power over Ethernet Splitter
Marketing Information:

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Product Type:   PoE Splitter

Power Description

Minimum Output Voltage:   9 V DC
Maximum Output Voltage:   12 V DC
Maximum Output Current:   2 A

Interfaces/Ports

Input Ports:   1 x 10/100Base-TX
Output Ports:   1 x 10/100Base-TX

Physical Characteristics

Height:   0.94" (24 mm)
Width:   3.19" (81 mm)
Depth:   2.13" (54 mm)

Miscellaneous

Package Contents:

• TL-POE10R Power over Ethernet Splitter
• Power Cord
• RJ45 Cable
• Installation Guide

Additional Information:

• Compatible with IEEE 802.3af compliant power sources (PSE)
• Delivers power up to 100 meters
• Selectable 12VDC, 9VDC or 5VDC power output
• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Compatibility:

• IP Cameras
• IP Phones
• TP-LINK TL-SF1008P Desktop PoE Switch
• TP-LINK TL-WA601G 108M Wireless Access Point
• TP-LINK TL-SF1008D 10/100M Desktop Switch

Certifications & Standards:   FCC
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
