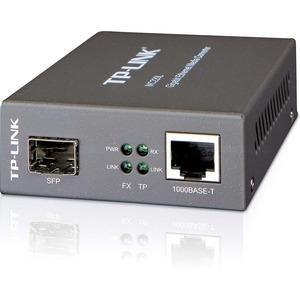

TP-Link MC220L Gigabit Ethernet Media Converter

UPC Code: 845973030476
Manufacturer Warranty: N/A
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   MC220L
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   MC220L
Product Name:   MC220L Gigabit Ethernet Media Converter
Marketing Information:

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Product Type:   Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports:   1
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   1

I/O Expansions

Number of Total Expansion Slots:   1
Expansion Slot Type:   SFP
Number of SFP Slots:   1

Network & Communication

Ethernet Technology:   Gigabit Ethernet
Network Technology:   1000Base-T

Power Description

Power Source:   Power Adapter
Power Consumption:   1.70 W

Physical Characteristics

Form Factor:   External
Height:   1.10" (27.94 mm)
Width:   3.70" (93.98 mm)
Depth:   2.90" (73.66 mm)

Miscellaneous

Package Contents:

• MC220L Gigabit Ethernet Media Converter
• Power Adapter
• Installation Guide

Additional Information:

FX Port Supports hot-swappable (LC/SC)

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
