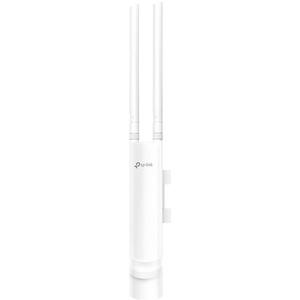

TP-Link EAP225-Outdoor Dual Band IEEE 802.11ac 1.17 Gbit/s Wireless Access Point - Outdoor

UPC Code: 845973083571
Manufacturer Warranty: 2 YEAR
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exch.-Call Vendor 905-881-9469 X229
Master Pack Qty: 20
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   EAP225-Outdoor
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   EAP225-Outdoor
Product Name:   AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Marketing Information:

Gigabit Wi-Fi Speeds with MU-MIMO Technology

EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications

EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 ? 1.8 ? 1.1in. (215 ? 46 ? 27mm)

Multiple PoE Options for Easy Installation

EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Flexible Deployment

EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.

Wi-Fi That Goes the Distance

With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+ at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

4KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It's network management as it should be - efficient and intuitive.

Product Type:   Wireless Access Point

Technical Information

Wireless LAN Standard:   IEEE 802.11ac
Network Band:   Dual Band
Frequency Band:   2.40 GHz
Frequency Band:   5 GHz
Indoor/Outdoor:   Outdoor
Wireless Transmission Speed:   1.17 Gbit/s
MIMO Technology:   Yes
Beamforming Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   Yes

Power Description

Power Consumption:   10.50 W

Physical Characteristics

Form Factor:   Pole-mountable
Form Factor:   Wall Mountable
Height:   1.10" (27.94 mm)
Width:   8.50" (215.90 mm)
Depth:   1.80" (45.72 mm)

Miscellaneous

Package Contents:

• AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
• Passive PoE Injector
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Rubber Insert
• Waterproof Antenna

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
