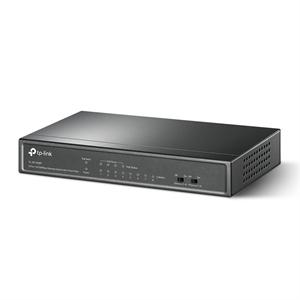

TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+

UPC Code: 845973020682
Manufacturer Warranty: N/A
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   TL-SF1008P
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   TL-SF1008P
Product Name:   8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Marketing Information:

TL-SF1008P is an 8 10/100M ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. TL-SF1008P has the priority function which will help protect the system by cutting off the power of the lowest-priority port when the system power is overloaded.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   8
Number of PoE (RJ-45) Ports:   4
Number of Network (RJ-45) Ports:   4
Network (RJ-45):   Yes
Port/Expansion Slot Details:   4 x Fast Ethernet Network
Port/Expansion Slot Details:   4 x Fast Ethernet PoE+

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Fast Ethernet
Network Technology:   10/100Base-TX

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.3af
Networking Standards:   IEEE 802.3at
Networking Standards:   IEEE 802.3x

Management & Protocols

Manageable:   No

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   66 W
Input Voltage:   48 V DC
Power Source:   Power Adapter
Power Consumption:   2.30 W

Physical Characteristics

Product Material:   Metal
Form Factor:   Desktop
Height:   1.10" (27.94 mm)
Width:   6.70" (170.18 mm)
Depth:   3.90" (99.06 mm)

Miscellaneous

Package Contents:

• 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
• Power Adapter
• Installation Guide

System Requirements:   Operating Systems:

• Windows 87/Vista/XP
• Mac OS X
• Linux

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
