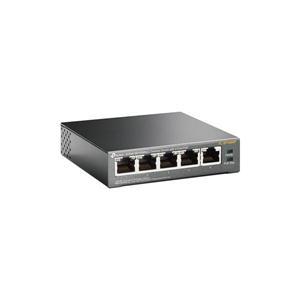

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

UPC Code: 845973083199
Manufacturer Warranty: N/A
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   TL-SF1005P
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   TL-SF1005P
Product Name:   5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Marketing Information:

What This Product Does

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement

TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use

TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

More from the Manufacturer

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   5
Uplink Port:   No
Modular:   No
Stack Port:   No
Network (RJ-45):   Yes
Port/Expansion Slot Details:   1 x Fast Ethernet Network
Port/Expansion Slot Details:   4 x Fast Ethernet PoE+

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Fast Ethernet
Network Technology:   10/100Base-T

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.3af
Networking Standards:   IEEE 802.3at
Networking Standards:   IEEE 802.3x

Management & Protocols

Manageable:   No

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   67 W
Power Source:   Power Adapter
Redundant Power Supply Supported:   No
Power Consumption:   1.90 W

Physical Characteristics

Product Material:   Metal
Form Factor:   Desktop
Height:   0.98" (25 mm)
Width:   3.93" (99.80 mm)
Depth:   3.86" (98 mm)

Miscellaneous

Package Contents:

• 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
• Power Adapter
• User Guide

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   5 Year
