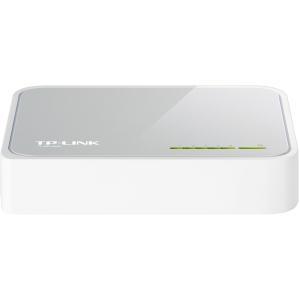

TP-Link 5-Port 10/100Mbps Desktop Switch

UPC Code: 845973020064
Manufacturer Warranty: N/A
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   TL-SF1005D
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   TL-SF1005D
Product Name:   5-Port 10/100Mbps Desktop Switch
Marketing Information:

What This Product Does

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

Packaged Quantity:   1
Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   5
Token Ring Port:   No
LRE Port:   No
Number of Network (RJ-45) Ports:   5
Network (RJ-45):   Yes
Port/Expansion Slot Details:   5 x Fast Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Fast Ethernet
Network Technology:   10/100Base-TX

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.3x

Power Description

PoE (RJ-45) Port:   No
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Power Source:   Power Adapter
Redundant Power Supply Supported:   No
Power Consumption:   1.90 W

Physical Characteristics

Product Color:   White
Product Material:   Plastic
Form Factor:   Desktop
Form Factor:   Wall Mountable
Height:   0.90" (22.86 mm)
Width:   4.10" (104.14 mm)
Depth:   2.80" (71.12 mm)

Miscellaneous

Package Contents:

• 5-Port 10/100Mbps Desktop Switch
• Power Adapter
• Installation Guide

Additional Information:

Features:

• CSMA/CD
• TCP/IP
• Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
• Supports MAC address auto-learning and auto-aging
• LED indicators for monitoring power, link, activity

System Requirements:   Operating Systems:

• Microsoft Windows 8/7/Vista/XP
• MAC OS X
• NetWare
• UNIX
• Linux

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
