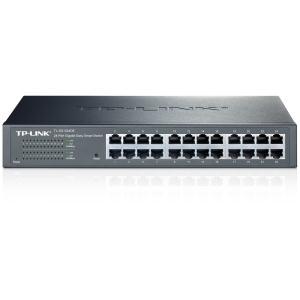

TP-Link 24-Port Gigabit Easy Smart Switch

UPC Code: 845973021245
Manufacturer Warranty: N/A
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns on Licenses
Master Pack Qty: 0
Country of Origin: CHINA

General Information

Manufacturer:   TP-LINK Technologies Co., Ltd
Manufacturer Part Number:   TL-SG1024DE
Manufacturer Website Address:   www.tp-link.com
Brand Name:   TP-Link
Product Model:   TL-SG1024DE
Product Name:   24-Port Gigabit Easy Smart Switch
Marketing Information:   What This Product Does

The TL-SG1024DE 24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1024DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1024DE can save up to 40% of power consumption, making it an eco-friendly solution for your business network.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   24
Token Ring Port:   No
LRE Port:   No
Bypass:   No
Modular:   No
Stack Port:   No
Number of Network (RJ-45) Ports:   24
Network (RJ-45):   Yes
Port/Expansion Slot Details:   24 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Twisted Pair Cable Standard:   Category 6
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.1p
Networking Standards:   IEEE 802.1Q
Networking Standards:   IEEE 802.3ab
Networking Standards:   IEEE 802.3i
Networking Standards:   IEEE 802.3u
Networking Standards:   IEEE 802.3x

Management & Protocols

Manageable:   Yes
Management:

• VLAN
• QoS

Power Description

PoE (RJ-45) Port:   No
Input Voltage:   110 V AC
Input Voltage:   220 V AC
Frequency:   50 Hz
Frequency:   60 Hz
Power Source:   Power Supply
Power Consumption:   14.19 W

Physical Characteristics

Compatible Rack Unit:   1U
Form Factor:   Desktop
Form Factor:   Rack-mountable
Height:   1.70" (43.18 mm)
Width:   11.60" (294.64 mm)
Depth:   7.10" (180.34 mm)

Miscellaneous

Package Contents:

• 24-Port Gigabit Easy Smart Switch
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   China
