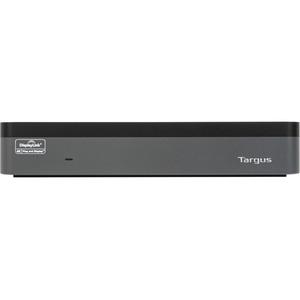

Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery

UPC Code: 092636329662
Manufacturer Warranty: 3 Year
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Targus 888-827-4877x245
Master Pack Qty: 6
Country of Origin: TAIWAN

General Information

Manufacturer:   Targus Group International
Manufacturer Part Number:   DOCK570USZ
Manufacturer Website Address:   www.targus.com
Brand Name:   Targus
Product Model:   DOCK570USZ
Product Name:   USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
Marketing Information:

Boost productivity and performance with the world's first enterprise-class universal docking station to deliver four 4K extended displays. Ideal for large enterprises - the Targus USB-C™ Universal Quad 4K (QV4K) Docking Station maximizes workstation viewing. Dual DisplayLink® DL-6910 chip technology supports up to four DisplayPort (3840 x 2160 p60) or HDMI (3840 x 2160 p50) displays. The docking station includes numerous additional ports to connect your essential peripherals and Ethernet network.

This sleek dock helps reduce clutter by providing the ease of a single connection for key peripherals like your mouse, keyboard, and more. Its rubberized, padded bottom protects against scratches, while the VESA bracket mounting provision allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings. Your most advanced configurations become easy with compatibility across virtually any laptop and most standard peripherals. Charging tips and a USB-C to USB-A adapter included to make this dock compatible with a variety of legacy laptops from major brands.

Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook
Number of Displays Supported:   4
Screen Mode Supported:   4K
Supported Resolutions:   3840 x 2160

Network & Communication

Ethernet Technology:   Gigabit Ethernet

Interfaces/Ports

Host Interface:   USB 3.2 (Gen 1) Type C
Total Number of USB Ports:   6
Number of USB 3.0 Ports:   4
Number of USB 3.1 Gen 1 Type-C Ports:   2
USB Type-A:   Yes
USB Type-C:   Yes
Network (RJ-45):   Yes
Number of DisplayPort Outputs:   4
DisplayPort:   Yes
DisplayPort Version:   1.2++
Headphone/Microphone Combo Port:   Yes
Number of HDMI Outputs:   4
HDMI:   Yes
HDMI Version:   2.0

Software

Operating System Supported:   Android
Operating System Supported:   Chrome OS
Operating System Supported:   Linux
Operating System Supported:   macOS
Operating System Supported:   Ubuntu
Operating System Supported:   Windows

Power Description

Maximum Power Supply Wattage:   100 W

Physical Characteristics

Product Color:   Black
Height:   8.15" (207.01 mm)
Width:   3.46" (87.88 mm)
Depth:   1.69" (42.93 mm)
Weight (Approximate):   680.4 g

Miscellaneous

Package Contents:

• USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
• User Guide
• DC cable to power tip, 1M
• Cable, Input US AC Cable Cord
• Power Tips
• USB-C/M (screwed) to C/M (normal) Cable, 1M, 5A, 10Gbps
• Adapter, AC to DC, output: 20V, 9A, 180W
• USB-C/F to A/M Adapter

Kensington Security Slot:   Yes
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   3 Year
