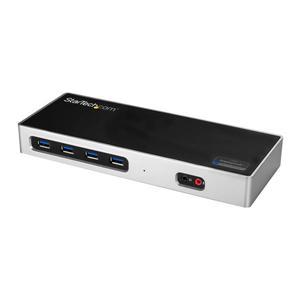

StarTech.com USB-C & USB-A Dock, Dual Monitor 4K 60Hz Dock DisplayPort/HDMI, Hybrid USB 3.0 Laptop Docking Station, 6x USB-A, mac/Windows

UPC Code: 065030868235
Manufacturer Warranty: 2 YEAR
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   DK30A2DH
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   Dual-4K Docking Station with 6 x USB 3.0 Ports
Marketing Information:

This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Dual-4K 60Hz Video

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

With the dual-4K dock, connect:

• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Connects to USB-C and USB-A Laptops

The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

All the Connections You Need

This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.

DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Packaged Quantity:   1
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook
Number of Displays Supported:   2
Screen Mode Supported:   4K
Supported Resolutions:   3840 x 2160
Supported Resolutions:   4096 x 2160

Network & Communication

Ethernet Technology:   Gigabit Ethernet

Interfaces/Ports

Host Interface:   USB Type C
Audio Line Out:   Yes
Number of USB 3.0 Ports:   6
USB Type-C:   Yes
USB Type-C Detail:   1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45):   Yes
Number of DisplayPort Outputs:   2
DisplayPort:   Yes
Microphone:   Yes
Number of HDMI Outputs:   2
HDMI:   Yes
Thunderbolt:   Yes

Controls/Indicators

Status Indicators:   1 x Power

Software

Operating System Supported:   macOS
Operating System Supported:   Windows

Power Description

Maximum Power Supply Wattage:   40 W

Physical Characteristics

Product Color:   Black
Product Color:   Silver
Height:   1.10" (27.94 mm)
Width:   3.30" (83.82 mm)
Depth:   8.80" (223.52 mm)
Weight (Approximate):   430.9 g

Miscellaneous

Package Contents:

• Dual-4K Docking Station with 6 x USB 3.0 Ports
• 1 x USB-C to USB-A cable
• 1 x USB-C to USB-C cable
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-Start Guide

Additional Information:   OS Compatibility:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• macOS Mojave (10.14)
• macOS Sierra (10.12)
• Mac OS X El Capitan (10.11)

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
