StarTech.com StarTech.com Ethernet Network adapter card - PCI - EN, Fast EN, Gigabit EN - 10Base-T, 100Base-TX, 1000Base-T

UPC Code: 065030795807
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 0
Country of Origin: TAIWAN

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   ST1000BT32
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Model:   ST1000BT32

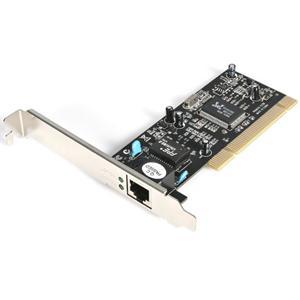

Product Name:   1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
Marketing Information:   This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   Gigabit Ethernet Card

Technical Information

Chipset Manufacturer:   Realtek
Chipset Model:   RTL8110SC

Interfaces/Ports

Host Interface:   PCI
Total Number of Ports:   1
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   1

Media & Performance

Media Type Supported:   Twisted Pair
Data Transfer Rate:   125 MB/s

Network & Communication

Network Technology:   10/100/1000Base-T

Physical Characteristics

Form Factor:   Plug-in Card
Height:   2.50" (63.50 mm)
Width:   0.80" (20.32 mm)
Length:   4.80" (121.92 mm)
Weight (Approximate):   53.9 g

Miscellaneous

Package Contents:

• 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
• 1 x Low Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Device Supported:   PC
System Requirements:

• Windows® NT, ME, 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Netware Server 5.x, Netware ODI for DOS
• Linux 2.6.x to 4.11.x, Unix
• Mac OS X 10.4

Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   Lifetime
