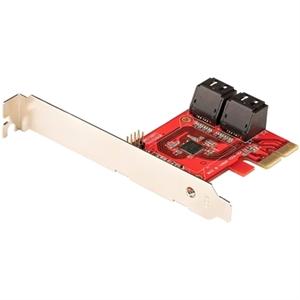

StarTech.com SATA PCIe Card, 4 Port PCIe SATA Expansion Card, 6Gbps, Stacked Connectors, Non-RAID, PCI Express to SATA Converter/Adapter
| MFR #: | 4P6G-PCIE-SATA-CARD |
| UPC: | 065030893879 |
| Shipping Wight: | 0.2 lb |
| Our Price: | $102.99 CAD |
| Availability: | In Stock |
| Est. ships: | In 2~3 Business Day |
Product Overview
Manufacturer Warranty: 2 Years
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 60
Country of Origin: TAIWAN
General Information
Manufacturer: StarTech.comManufacturer Part Number: 4P6G-PCIE-SATA-CARD
Manufacturer Website Address: www.startech.com
Brand Name: StarTech.com
Product Name: PCIe SATA Card
Marketing Information:
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
Product Type: SATA Controller
Technical Information
Host Interface: PCI Express 3.0 x4Controller Type: Serial ATA/600
RAID Supported: No
Device Supported: Server
Operating System Supported: Linux 2.6.32
Operating System Supported: Mac OS X 10.10 Yosemite
Operating System Supported: Mac OS X 11.0 Big Sur
Operating System Supported: Windows 10
Operating System Supported: Windows 11
Operating System Supported: Windows 7
Operating System Supported: Windows 8
Operating System Supported: Windows 8.1
Operating System Supported: Windows Server 2012 R2
Operating System Supported: Windows Server 2016
Operating System Supported: Windows Server 2019
Interfaces/Ports
Total Number of SATA Ports: 4Number of SATA Ports (Internal): 4
Physical Characteristics
Height: 0.60" (15.24 mm)Width: 2.20" (55.88 mm)
Length: 2.80" (71.12 mm)
Form Factor: Plug-in Card
Weight (Approximate): 75 g
Miscellaneous
Package Contents:- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
Platform Supported: Linux
Platform Supported: Mac
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: WEEE
Country of Origin: Taiwan
