StarTech.com Rackmount KVM Console - 1U 17" LCD Monitor Single Port VGA KVM Server Rack Drawer includes Cables & Hardware - USB Support

UPC Code: 065030872522
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 1
Country of Origin: CHINA

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   RKCONS1701
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   Single-Port Rackmount KVM Console with 17" Display
Marketing Information:

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

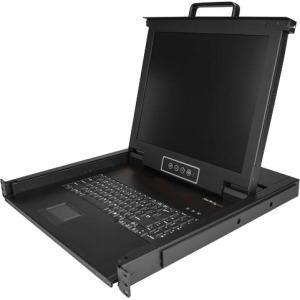

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type:   LCD Rack Console

Technical Information

KVM Switch:   No
Number of Computers Supported:   1
Device Type:   LCD Rack Console

Display & Graphics

Screen Size:   17"
Display Screen Type:   LCD
Screen Mode:   SXGA
Screen Resolution:   1280 x 1024

Input Devices

Keyboard:   Yes
Pointing Device Type:   TouchPad

Interfaces/Ports

USB:   Yes
VGA:   Yes
Number of VGA Ports:   1

Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Input Voltage Range:   100V AC to 240V AC
Power Consumption:   13 W

Physical Characteristics

Product Color:   Black
Product Material:   Steel
Height:   1.70" (43.18 mm)
Width:   17.60" (447.04 mm)
Depth:   18.50" (469.90 mm)
Weight (Approximate):   11.75 kg

Miscellaneous

Package Contents:

• Single-Port Rackmount KVM Console with 17" Display
• 1 x KVM Cable
• 8 x M5 Cage Nuts
• 8 x M5 Screws
• 5 x Regional Power Cords (NA, JP, UK, EU, ANZ)
• 2 x Mounting Rails
• 1 x Quick-start Guide

Platform Supported:   PC
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
