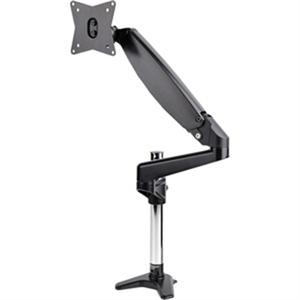

StarTech.com Desk Mount Monitor Arm for Single VESA Display 32" , 8kg/17.6lb, Full Motion Articulating & Height Adjustable, C-Clamp/Grommet

UPC Code: 065030891691
Manufacturer Warranty: 5 Years
D&H Returns Allowed: no
Return Period (Days): 30
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 2
Country of Origin: CHINA

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   ARMPIVOTE2
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   Mounting Arm
Marketing Information:   This desk mount monitor arm enables you to mount and raise a monitor with a maximum screen size of 32"" (16:9) or 49"" (32:9) ultrawide. Its solid steel construction allows this monitor arm to support up to 17.6lb (8kg) with two mounting options (C-Clamp or Grommet mount) to securely attach your monitor to your desk.

Full Motion Articulation

Setup an ergonomic work environment and reclaim valuable workspace on your desk. The adjustable monitor mount lets you extend the arm a full 23.2"" (590mm) from the pole. The full motion arm moves freely provides a wide range of motion across multiple axes. You can tilt the monitor +90/-85 degrees, swivel +90/-90 degrees, and even rotate 360 degrees, to find the ideal viewing angle. Switch back and forth from landscape to portrait orientation at any time. Featuring spring-assisted height adjustment, the display mount lets you raise or lower your monitor up to 13.4"" (341mm) with smooth, and effortless positioning by hand. Additional adjustments with the included tools allow you to raise the monitor arm along the pole for a maximum height of 24"" (610 mm) from the mounting surface.

Organized Workspace

This single desk monitor arm enables you to free up space by letting you mount your monitor to your desk, table, or countertop. In addition, it features integrated cable management channels along the arm, and cable management clips to route your cables and maintain an organized and professional look on your workstation.

Easy Installation

With the detachable VESA plates with quick-release clips, you can mount your display to the mount with ease. Either clamp the mount to the side of a desk up to 85mm thick, table or mount it through a grommet hole on desks up to 70mm thick.

ARMPIVOTE2 is backed by a StarTech.com 5-year warranty and free, lifetime technical support.

Product Type:   Mounting Arm

Product Information

Device Supported:   Curved Screen Display
Device Supported:   Flat Panel Display
Device Supported:   Monitor
Number of Displays Supported:   1
Maximum Load Capacity:   8 kg
Minimum Screen Size Supported:   32"
Maximum Screen Size Supported:   49"
Adjustable Height:   Yes
Features:   360° Rotation
Features:   Adjustable Tension
Features:   Articulating
Features:   Cable Management
Features:   Ergonomic
Features:   Extendable Arm
Features:   Full Motion
Features:   Pivot
Features:   Rotate
Features:   Swivel
Features:   Tilt

Physical Characteristics

VESA Mount Compatible:   Yes
VESA Mount Standard:   100 x 100
VESA Mount Standard:   75 x 75
Product Material:   Steel
Height:   5.50" (139.70 mm)
Width:   11.40" (289.56 mm)
Length:   19.10" (485.14 mm)
Weight (Approximate):   4.22 kg

Miscellaneous

Package Contents:

• 1 - Pole assembly
• 1 - Arm assembly
• 1 - VESA mount
• 4 - M4x12mm screws
• 4 - M4x30mm screws
• 4 - Spacers
• 1 - Cable management clip
• 1 - 3mm hex key
• 1 - 4mm hex key
• 1 - 5mm hex key
• 3 - M5x6mm screws
• 1 - Cable management attachment
• 1 - Grommet plate
• 1 - Instructions manual

Application/Usage:   Desk
Application/Usage:   Retail Counter
Application/Usage:   Table Top
Country of Origin:   China

Warranty

Limited Warranty:   5 Year
