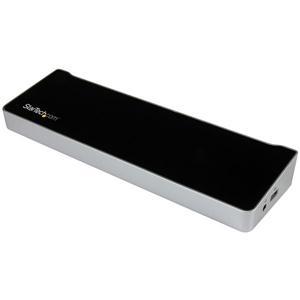

StarTech.com 4K USB C Dock - Triple UHD 4K Monitor Docking Station - Mac & Windows - USB C to HDMI & DisplayPort - 60W PD 5x USB 3.0 Ports

UPC Code: 065030867672
Manufacturer Warranty: 2 YEAR
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 10
Country of Origin: TAIWAN

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   DK30CH2DPPD
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   Triple Monitor 4K USB-C Dock with 5x USB 3.0 Port
Marketing Information:

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It's the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wired
Device Supported:   Notebook/Tablet PC

Interfaces/Ports

Host Interface:   USB Type C
Audio Line Out:   Yes
Number of USB 3.0 Ports:   5
USB Type-C:   Yes
USB Type-C Detail:   1 x USB-C
Network (RJ-45):   Yes
Number of DisplayPort Outputs:   2
DisplayPort:   Yes
Headphone:   Yes
Microphone:   Yes
Number of HDMI Outputs:   1
HDMI:   Yes
Thunderbolt:   Yes

Power Description

Maximum Power Supply Wattage:   60 W

Physical Characteristics

Product Color:   Black
Product Color:   Silver
Height:   1.30" (33.02 mm)
Width:   3.20" (81.28 mm)
Length:   10.60" (269.24 mm)
Weight (Approximate):   385.6 g

Miscellaneous

Package Contents:

• Triple Monitor 4K USB-C Dock with 5x USB 3.0 Port
• 1 x USB-C Cable
• 1 x Universal Power Adapter (NA/JP, ANZ)
• 1 x Instruction Manual
• 1 x Add Anti-Slip Rubber Pads

Additional Information:

OS Compatibility:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• macOS Mojave (10.14)
• macOS Sierra (10.12)
• Mac OS X El Capitan (10.11)
• Chrome OS

Compatibility:   Tablet PC/Notebooks:

• Apple MacBook Pro
• Google Chromebook Pixel
• Dell XPS 15
• HP Zbook 15u
• Samsung Galaxy TabPro S
• Asus ROG
• Lenovo Yoga 900

Brand Compatibility:   Apple
Brand Compatibility:   Asus
Brand Compatibility:   Dell
Brand Compatibility:   Google
Brand Compatibility:   HP
Brand Compatibility:   Lenovo
Brand Compatibility:   Samsung
Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   3 Year
