StarTech.com 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables

UPC Code: 065030852814
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 0
Country of Origin: TAIWAN

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   SV431USBDDM
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Model:   SV431USBDDM
Product Name:   4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables
Marketing Information:

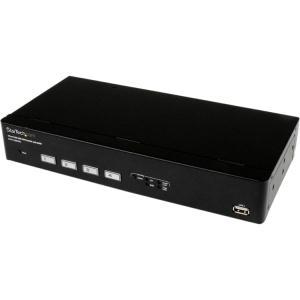

The SV431USBDDM 4-Port USB VGA KVM Switch lets you control 4 VGA, USB-equipped PCs using a single peripheral set at high-definition VGA resolutions up to 1920x1440.

The included KVM cables provide a ready-out-of-the-box solution, USB Dynamic Device Mapping (DDM) works to reduce switching lag-time, and Display Data Channel (DDC) improves overall compatibility with your connected display and input devices.

For the next level in KVM performance, this VGA KVM switch integrates multi-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   KVM Switchbox

Technical Information

Number of Computers Supported:   4
Number of Local Users Supported:   1
Daisy Chain Supported:   No

Video

Maximum Video Resolution:   1920 x 1440

Interfaces/Ports

Network (RJ-45):   Yes
USB:   Yes
VGA:   Yes
Number of Network (RJ-45) Ports:   1
Number of USB Ports:   4
Number of VGA Ports:   5

Power Description

Input Voltage:   110 V AC
Input Voltage:   220 V AC
Input Voltage Range:   100V AC to 240V AC

Physical Characteristics

Product Color:   Black
Height:   1.80" (45.72 mm)
Width:   5.10" (129.54 mm)
Depth:   10.80" (274.32 mm)
Weight (Approximate):   1.13 kg

Miscellaneous

Package Contents:

• 4 Port USB VGA KVM Switch with DDM Fast Switching Technology and Cables
• 4 x 6ft VGA USB KVM Cables
• 1 x Firmware Upgrade Cable
• 1 x Universal Power Adapter (NA/UK/EU)
• 1 x Instruction Manual

Platform Supported:   PC
Certifications & Standards:

• CE
• FCC

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Taiwan
TAA Compliant:   Yes

Warranty

Limited Warranty:   2 Year
