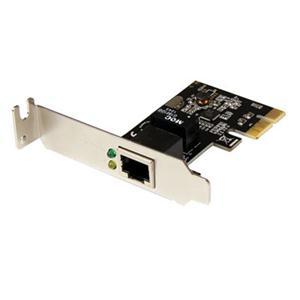

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile

UPC Code: 065030852265
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 50
Country of Origin: CHINA

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   ST1000SPEX2L
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Marketing Information:

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   Gigabit Ethernet Card

Technical Information

Chipset Manufacturer:   Realtek
Chipset Model:   RTL8111

Interfaces/Ports

Host Interface:   PCI Express
Total Number of Ports:   1
Network (RJ-45):   Yes
USB:   No
Serial Port:   No
Ethernet AUI:   No
XJACK:   No
PoE (RJ-45) Port:   No
Number of Network (RJ-45) Ports:   1

Media & Performance

Media Type Supported:   Twisted Pair
Data Transfer Rate:   125 MB/s

Network & Communication

Network Technology:   10/100/1000Base-T

Physical Characteristics

Card Length:   Half-length
Card Height:   Low-profile
Form Factor:   Plug-in Card
Height:   1.90" (48.26 mm)
Width:   0.70" (17.78 mm)
Length:   2.80" (71.12 mm)
Thickness:   0.70" (17.78 mm)
Weight (Approximate):   28.3 g

Miscellaneous

Package Contents:

• 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
• 1 x Standard Profile Bracket
• 1 x Instruction Manual

Device Supported:   PC
System Requirements:

• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS X® 10.6 to 10.9
• Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
