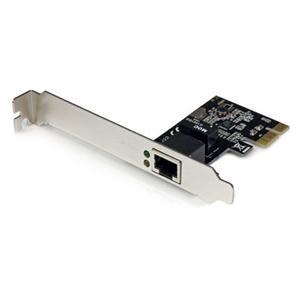

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

UPC Code: 065030849265
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 50
Country of Origin: CANADA

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   ST1000SPEX2
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
Marketing Information:

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   Gigabit Ethernet Card

Technical Information

Chipset Manufacturer:   Realtek
Chipset Model:   RTL8111

Interfaces/Ports

Host Interface:   PCI Express x1
Total Number of Ports:   1
Network (RJ-45):   Yes
USB:   No
Serial Port:   No
Ethernet AUI:   No
XJACK:   No
PoE (RJ-45) Port:   No
Number of Network (RJ-45) Ports:   1

Media & Performance

Media Type Supported:   Twisted Pair
Data Transfer Rate:   125 MB/s

Network & Communication

Network Technology:   10/100/1000Base-T
InfiniBand:   No

Physical Characteristics

Card Height:   Full-height
Card Height:   Low-profile
Form Factor:   Plug-in Card
Height:   0.70" (17.78 mm)
Width:   4.70" (119.38 mm)
Length:   2.70" (68.58 mm)
Weight (Approximate):   36.9 g

Miscellaneous

Package Contents:

• 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
• 1 x Low Profile Bracket
• 1 x Instruction Manual

Device Supported:   PC
System Requirements:

• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS X® 10.6 to 10.9
• Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:   Yes
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   China

Warranty

Limited Warranty:   2 Year
