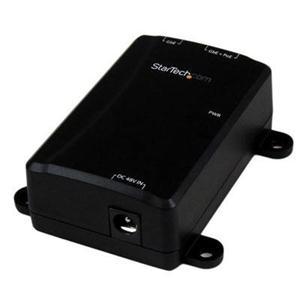

StarTech.com 1 Port Gigabit PoE Power over Ethernet Injector 48V / 30W - 802.3at / 802.3af - Wall-Mountable

UPC Code: 065030852623
Manufacturer Warranty: 2 YEARS
D&H Returns Allowed: yes
Return Period (Days): 90
Add'l Return Info: Past Exch-Call Startech 800-265-1844
Master Pack Qty: 0
Country of Origin: TAIWAN

General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   POEINJ1G
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com
Product Name:   1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable
Marketing Information:

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).

The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

Convenience and cost savings

This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn't available.

Easy to set up in mixed environments

You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that's perfect for installing on walls or under a desk, but it's also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Intelligent power allocation

Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:   1
Product Type:   PoE Injector

Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Maximum Output Voltage:   48 V DC
Maximum Input Current:   750 mA
Maximum Output Current:   750 mA
Maximum Frequency:   60 Hz
Maximum Output Power:   30 W

Interfaces/Ports

Input Ports:   1 x 10/100/1000Base-T
Output Ports:   1 x 10/100/1000Base-T

Physical Characteristics

Product Color:   Black
Mount Type:   Wall Mountable
Height:   1" (25.40 mm)
Width:   2.50" (63.50 mm)
Length:   2.80" (71.12 mm)
Weight (Approximate):   51 g

Miscellaneous

Package Contents:

• POE+ Injector
• 4 x Mounting Screws
• 1 x Universal Power Adapter
• 3 x Power Cords (NA/UK/EU)
• 1 x Instruction Manual

Certifications & Standards:

• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• CE
• FCC

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Country of Origin:   Taiwan

Warranty

Limited Warranty:   2 Year
