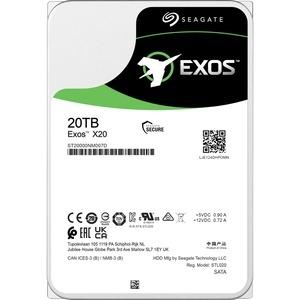

Seagate Exos X20 ST20000NM007D 20 TB Hard Drive - Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method

UPC Code: 763649153116
Manufacturer Warranty: 1 year
D&H Returns Allowed: yes
Return Period (Days): 30
Add'l Return Info: Past Exchange-Call Seagate 800-468-3472
Master Pack Qty: 20
Country of Origin: MALAYSIA

General Information

Manufacturer:   Seagate Technology
Manufacturer Part Number:   ST20000NM007D
Manufacturer Website Address:   www.seagate.com
Brand Name:   Seagate
Product Line:   Exos
Product Series:   X20
Product Model:   ST20000NM007D
Product Name:   Exos X20 ST20000NM007D Hard Drive
Marketing Information:   "Designed with the highest rack-space efficiency and protected with Seagate Secure™ Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."

Maximum Storage Capacity for Highest Rack Space Efficiency

Market-leading 20 TB HDD offering the highest capacity available for more petabytes per rack

Highly reliable performance with enhanced caching, making it the logical choice for cloud data centre and massive scale-out data centre applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance™ feature optimises Watts/TB

Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design

Proven helium side-sealing weld technology for added handling robustness and leak protection

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security - Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Product Type:   Hard Drive

Technical Information

Storage Capacity:   20 TB
Recording Technology:   Conventional Magnetic Recording (CMR)
Disk Format:   512e/4Kn

Drive Performance

Random 4KB Read:   168000IOPS
Random 4KB Write:   550000IOPS
Spindle Speed (rpm):   7200
Buffer:   256 MB

Network & Communication

Wireless LAN:   No

Interfaces/Ports

Drive Interface:   SATA
Drive Interface Standard:   SATA/600

Physical Characteristics

Drive Type:   Internal
Hot Pluggable:   Yes
Height:   1.03" (26.10 mm)
Width:   4.01" (101.85 mm)
Depth:   5.79" (147 mm)
Weight (Approximate):   670 g

Miscellaneous

Device Supported:   Storage System
Device Supported:   Video Surveillance System
