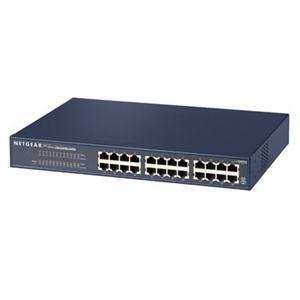

Netgear ProSafe JGS524 24-Port Gigabit Ethernet Switch

UPC Code: 606449036459
Manufacturer Warranty: 50
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info:
Master Pack Qty: 6
Country of Origin: CHINA

General Information

Manufacturer:   Netgear, Inc
Manufacturer Part Number:   JGS524NA
Manufacturer Website Address:   www.netgear.com
Brand Name:   Netgear
Product Line:   ProSafe
Product Series:   JGS500
Product Model:   JGS524
Product Name:   ProSafe JGS524 24-Port Gigabit Ethernet Switch
Marketing Information:

NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-port switch can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   24
Number of Network (RJ-45) Ports:   24
Port/Expansion Slot Details:   24 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Twisted Pair Cable Standard:   Category 5
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T

Network & Communication

Layer Supported:   2

Management & Protocols

Manageable:   No

Reliability

MTBF:   87600 Hour

Power Description

Input Voltage:   110 V AC
Input Voltage:   220 V AC
Frequency:   60 Hz
Power Consumption:   40 W

Physical Characteristics

Form Factor:   Rack-mountable
Height:   1.70" (43.18 mm)
Width:   13" (330.20 mm)
Depth:   8.20" (208.28 mm)
Weight (Approximate):   2.40 kg

Miscellaneous

Package Contents:

• 24-port Gigabit Ethernet Switch JGS524
• Power adapter
• Installation guide
• Rack-mount kit
• Warranty/Support information card

Additional Information:

• Latency (1000 to 1000 Mbps): 20 µs max

Certifications & Standards:

• IEEE 802.3i: 10BASE-T Ethernet
• IEEE 802.3u: 100BASE-TX Fast Ethernet
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
• IEEE 802.3x: Flow Control

Electromagnetic Compliance:

• CE mark, commercial
• FCC Part 15 Class A
• VCCI Class A
• EN 55022 (CISPR 22), Class A, EN 50082-1
• EN 55024
• C-Tick

Safety Agency Approvals:

• UL listed (UL 1950)/cUL
• IEC950/EN60950

System Requirements:

• UTP Category 5 cables or better
• Network card for each PC or server

Warranty

Limited Warranty:   Lifetime
