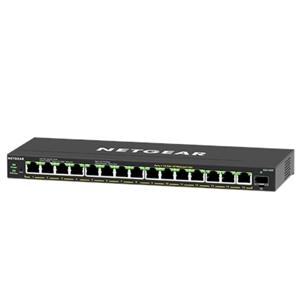

Netgear GS316EP Ethernet Switch

UPC Code: 606449153637
Manufacturer Warranty: Lifetime
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: No Returns if Activated-Call Netgear 800-211-2069
Master Pack Qty: 6
Country of Origin: THAILAND

General Information

Manufacturer:   Netgear, Inc
Manufacturer Part Number:   GS316EP-100NAS
Manufacturer Website Address:   www.netgear.com
Brand Name:   Netgear
Product Model:   GS316EP
Product Name:   GS316EP Ethernet Switch
Marketing Information:   NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.

Highlights

• Enable network configuration and management at the price point of unmanaged switches
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Business-friendly and easy-to-use web browser-based management GUI
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto "denial-of-service" (DoS) prevention
• Troubleshoot connection issues via cable test
• Loop prevention, loop detection, and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame support
• Advanced features such as per port PoE controls
• Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
• 802.3at standard offering 30W/port
• Fanless and versatile mounting option (desktop and wall-mountable)

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   15
Modular:   Yes
Port/Expansion Slot Details:   1 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details:   15 x Gigabit Ethernet PoE+

Media & Performance

Media Type Supported:   Optical Fiber
Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T
Network Technology:   1000Base-X

I/O Expansions

Number of Total Expansion Slots:   1
Expansion Slot Type:   SFP (mini-GBIC)
Number of SFP Slots:   1

Network & Communication

Layer Supported:   3

Management & Protocols

Manageable:   Yes

Power Description

PoE (RJ-45) Port:   Yes
PoE Budget:   180 W
Power Source:   Power Adapter

Physical Characteristics

Form Factor:   Desktop
Form Factor:   Wall Mountable
Height:   1.06" (27 mm)
Width:   11.26" (286 mm)
Depth:   4.02" (102 mm)
Weight (Approximate):   883 g

Miscellaneous

Package Contents:

• GS316EP Ethernet Switch
• Power Adapter
• Wall Installation Kit
• Rubber Feet
• Installation Guide

Environmentally Friendly:   Yes
Environmental Certification:   ErP
Environmental Certification:   REACH
Environmental Certification:   RoHS
Environmental Certification:   WEEE
Country of Origin:   Thailand

Warranty

Limited Warranty:   5 Year Lifetime
