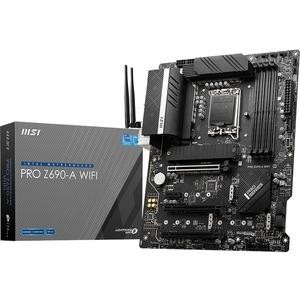

MSI Z690-A WIFI DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

UPC Code: 824142270394
Manufacturer Warranty: 3 Years
D&H Returns Allowed: no
Return Period (Days): 0
Add'l Return Info: Past Exch Call 888-447-6564
Master Pack Qty: 10
Country of Origin: CHINA

General Information

Manufacturer:   MSI
Manufacturer Part Number:   Z690AWID4
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Series:   PRO
Product Model:   Z690-A WIFI DDR4
Product Name:   PRO Z690-A WIFI DDR4 Desktop Motherboard
Marketing Information:   Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
Product Type:   Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   Z690
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Supported:   Celeron
Processor Supported:   Core i5
Processor Supported:   Core i7
Processor Supported:   Core i9
Processor Supported:   Pentium Gold
Multi GPU Supported:   CrossFire

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5200 MHz
Intel Optane Memory Ready:   Yes

I/O Controller

Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ax

I/O Expansions

Number of Total Expansion Slots:   4
Total Number of PCI Express Slots:   4
Number of PCI Express x4 Slots:   1
Number of PCI Express x16 Slots:   3

Interfaces/Ports

Total Number of USB Ports:   8
Number of USB 2.0 Ports:   4
Number of USB 3.2 Ports:   1
Number of USB 3.2 Gen 1 Ports:   2
Number of USB 3.2 Gen 2 Type-A Ports:   1
S/PDIF:   Yes
HDMI:   Yes
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   4
Total Number of Onboard USB Ports:   9
Number of Onboard USB 2.0 Ports:   4
Number of Onboard USB 3.2 Ports:   5

Physical Characteristics

Form Factor:   ATX
Width:   12" (304.80 mm)
Depth:   9.60" (243.84 mm)

Miscellaneous

Package Contents:

• PRO Z690-A WIFI DDR4 Desktop Motherboard
• Quick Installation Guide
• M.2 Screw / Standoff Sets
• 2 x M.2 Clips
• 2 x SATA Cables
• Product Registration Card
• I/O Shield
• Wi-Fi Antenna
• Driver DVD

Brand Compatibility:   Intel

Warranty

Limited Warranty:   3 Year
