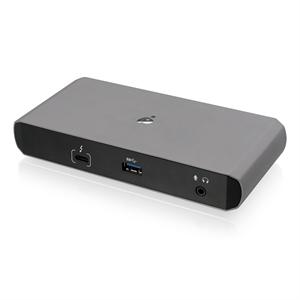

IOGEAR Quantum Dual Mode Thunderbolt 3 Dock Pro

UPC Code: 881317519092
Manufacturer Warranty: Limited Lifetime
D&H Returns Allowed: yes
Return Period (Days): 50
Add'l Return Info: Past Exch.-Call IOGear 866-946-4327
Master Pack Qty: 6
Country of Origin: THAILAND

General Information

Manufacturer:   IOGEAR, Inc
Manufacturer Part Number:   GTD737
Manufacturer Website Address:   www.iogear.com
Brand Name:   IOGEAR
Product Name:   Quantum Dual Mode Thunderbolt 3 Dock Pro Station
Marketing Information:

• 9-Ports expand the functionality of your Thunderbolt 3 or USB-C laptop
• Dual 4K @60Hz resolution* displays (DisplayPort) with a Thunderbolt 3 laptop
• Single 4K @30Hz resolution displays with a USB-C (w/DP alt mode) laptop
• 3x USB-A ports, 1 supports 10Gbps SuperSpeed, 2x USB-C ports, 1x GbE port, 2x DisplayPorts for video & 1x Headphone jack, 1x Thunderbolt 3/USB-C host port
• Supports laptop charging up to 60W via external 135W power supply

More from the Manufacturer

Product Type:   Docking Station

Technical Information

Connectivity Technology:   Wireless

Interfaces/Ports

Host Interface:   USB Type C
Audio Line Out:   Yes
Total Number of USB Ports:   5
Number of USB 3.1 Gen 1 Type-A Ports:   2
USB Type-C:   Yes
USB Type-C Detail:   2 x USB C 3.1 Gen 2 Expansion Ports
Network (RJ-45):   Yes
Number of DisplayPort Outputs:   2
DisplayPort:   Yes
Thunderbolt:   Yes

Power Description

Maximum Power Supply Wattage:   60 W

Physical Characteristics

Height:   1.06" (26.92 mm)
Depth:   3.14" (79.76 mm)
Length:   6.60" (167.64 mm)
Weight (Approximate):   317.5 g

Miscellaneous

Additional Information:

• Upstream Port - Thunderbolt|Thunderbolt 3
• Upstream Port - Cable Length|2.3ft (0.7m)
• Connectors - Audio Input|1x 3.5mm Combo headphone jack
• Connectors - USB-A|1x USB-A(3.1 Gen 2, BC 1.2) 2x USB-A(3.1 Gen 1)
• Connectors - USB-C|2x USB-C(3.1 Gen 2)
• Connectors - LAN|Gigabit (10/100/1000Mbps)
• Display Output - DisplayPort|2x Displayport 1.2
• Display Output - Cable Type|Thunderbolt 3 40Gbps
• Display Output - Resolution|Thunderbolt Mode: Dual Display up to 4096x2160@60Hz, Single Display up to 4096x2160@60Hz / USB-C Mode: Dual Display up to 1920x1080@60Hz(extended mode)Windows, Dual Display 4096x2160@30Hz(Mirror mode)- Mac , Single View up to 4096x2160@30Hz- both Mac & Wi
• Unit Package Dimensions - Width|9.17""
• Unit Package Dimensions - Height|5.9""
• Unit Package Dimensions - Depth|3.3""
• Master Carton - Width|10.7""
• Master Carton - Height|9.44""
• Master Carton - Depth|6.7""
• Master Carton - Master Carton Qty.|3 pc
• Weight - Master Carton Wt.|9.2 lbs
• Weight - Unit Pack Wt.|2.75 lbs

Country of Origin:   Thailand
TAA Compliant:   Yes
